Release notes for the Genode OS Framework 9.02

Summary
Major new Features
  Genode on L4ka::Pistachio
  Qt4 on Genode
  Networking
Operating-system services and libraries
  C Runtime
  Device-Driver-Environment Kit
  PS/2 input driver
Applications
  Launchpad configuration
Platform-specific changes
  L4/Fiasco
  32-bit Linux
Tools and build infrastructure
  Official tool chain
  Build-directory creation tool
  Build system
  ISO image creation tool

Summary

Whereas the focus of the previous release 8.11 was the refinement of Genode's base API and the creation of the infrastructure needed to build real-world applications, the release 9.02 is focused on functional enhancements in two directions. The first direction is broadening the number of possible base platforms for the framework. At present, most microkernels bring along a custom user land, which is closely tied to the particular kernel. Our vision is to establish Genode as a common ground for developing applications, protocol stacks, and device drivers in such a way that the software becomes easily portable among different kernels. This release makes Genode available on the L4ka::Pistachio kernel. Hence, software developed with the Genode API can now run unmodified on Linux/x86, L4/Fiasco, and L4ka::Pistachio. In the second direction, we are steadily advancing the functionality available on top of Genode. With this release, we introduce a basic networking facility and support for native Qt4 applications as major new features. Thanks to Genode's portability, these features become automatically available on all supported base platforms.

Our original plan for the release 9.02 also comprised the support of a Linux-on-Genode (para-)virtualization solution. Initially, we intended to make L4Linux available on the L4/Fiasco version of Genode. However, we identified several downsides with this approach. Apparently, the development of the officially available version of L4/Fiasco has become slow and long-known issues remain unfixed. L4Linux, however, is closely tied to L4/Fiasco and the L4 environment. For us at Genode Labs, maintaining both a custom port of L4Linux for Genode and L4/Fiasco by ourself in addition to developing Genode is unfeasible. In contrast, the Pistachio kernel features more advanced options for virtualization (Afterburner and VT support) that we want to explore. Furthermore, there exists another version of L4Linux called OKLinux for the OKL4 kernel developed at OK-Labs, which is very interesting as well. Therefore, we decided against an ad-hoc solution and deferred this feature to the next release. See our updated road map...

Major new Features

Genode on L4ka::Pistachio

From the very beginning, the base API of the Genode OS Framework was designed for portability. We put a lot of effort into finding API abstractions that are both implementable on a wide range of kernels and as close to the hardware as possible to keep the abstraction overhead low. For this reason, we developed the framework in parallel for the Linux kernel and the L4/Fiasco kernel. To validate our claim that Genode is highly portable, Julian Stecklina ported the framework to another member of the L4 family, namely the L4ka::Pistachio kernel. This high-performance kernel implements the latest official L4 API called L4.x2 and has a number of advanced features such as multi-processor support and virtualization support.

After Julian successfully created the first Pistachio version of Genode, we successively refined his work and conducted further unifications among the platform-dependent code for the different kernels. The result of this effort is included in this release and comes in the form of the base-pistachio source-code repository.

  • The IRQ handling on Pistachio is slightly different from L4/Fiasco. On L4/Fiasco, an IRQ becomes unmasked only when the user-level IRQ handler thread blocks for an IRQ by issuing an IPC call to the kernel's corresponding IRQ thread. In contrast, Pistachio unmasks an IRQ as soon as the user-level IRQ handler associates itself with an IRQ. Thus, an IRQ message may occur not only when the user-level IRQ handler blocks for any IRQ but anytime. In particular, IRQ messages may interfere with the IRQ handler's IPC communication with other threads. To ensure that IRQ messages do only occur when expecting them, we lazily associate the IRQ handler thread to the IRQ the first time we wait for an IRQ and issue an unmasking IPC call subsequent times.

  • Genode provides a mechanism for gracefully destructing threads that are in a blocking state, for example waiting for an IPC message. Such a thread may hold locks or other resources that would not get properly freed when just killing the thread by force. Therefore, Genode provides a way to issue the cancellation of a blocking operation by another thread (e.g., the thread calling the destructor). Once, a blocking operation got canceled, a C++ exception (Blocking_canceled) is raised such the thread can fall back into a defined state and then be destructed. On L4ka::Pistachio, we use Pistachio's pager-exchange-registers feature in combination with the user-defined UTCB handle for cancelling blocking operations and detecting cancellations. The interesting code bits can be found in src/base/ipc/ipc.cc, src/base/lock/lock.cc, src/core/platform_thread.cc, and in the Pistachio-specific timer-service implementation.

  • During the refinement of the Pistachio version, we were able to further generalize code that was previously specific for L4/Fiasco and L4ka::Pistachio respectively. Now, the platform-specific code comprises less than 3,000 lines of code (LOC) for L4/Pistachio, circa 2,000 LOC for L4/Fiasco, and circa 1,000 LOC for Linux. Hence, we expect that porting the framework to further kernels is possible at reasonable engineering costs.

Current limitations
  • The current version does not use superpages (4M mappings) because we experienced problems with mapping 4K pages out of 4M pages. This is an issue that we like to investigate further because using 4M mappings would improve the boot time and reduce the kernel-memory usage.

  • Currently, we use a simple sleeping spinlock for synchronization, which is not optimal for several reasons. There are no fairness guarantees, the spinning consumes CPU time, and threads that got blocked in the contention case are woken up at the coarse granularity of the kernel's timer tick, which is typically one millisecond.

  • Nested RM sessions as introduced as an experimental feature in the Genode release 8.11 are not yet supported.

Further details

You can find further technical details and usage instructions at this dedicated page.

Qt4 on Genode

The minimalism of the Genode OS Framework with regard to its code complexity raised the question of whether this framework is feasible for hosting real-world applications and widely used runtime environments. Christian Prochaska took the challenge to port Trolltech's Qt4 application framework, which serves as the basis for the popular KDE desktop, to Genode.

Because Christian started his work more than a year ago at a time when no C library was available on Genode, several intermediate steps were needed. The first step was the integration of the Qt4 tools such as the meta-object compiler (moc) and resource compiler properly into the our build systion. With the tools in place, the Linux version of Genode came to an advantage. In this environment, a Genode application is able to use glibc functionality. So the problem of a missing C library could be deferred and Christian was able to focus on interfacing Qt with the existing Genode services such as the Nitpicker GUI sever. Next, the glibc dependencies were successively replaced by custom implementations or simple dummy stubs. Thereby, all needed functionalities such as timed semaphores and thread-local storage had to be mapped to existing Genode API calls. Once, all glibc dependencies had been dissolved, Qt could be compiled for the L4/Fiasco version.

Since a C library has become available in Genode 8.11, we were able to replace Christian's intermediate stub codes with a real C library. We also utilize recently added features of Genode such as its alarm framework to simplify the Qt4 port. Furthermore, we were able to remove all platform-specific bits such that the Qt4 port has now become completely generic with regard to the underlying kernel. Qt4 can be executed on Linux, L4/Fiasco, and L4ka::Pistachio without any changes. Figure 1 shows a screenshot of Qt's Tetrix example running side-by-side with native Genode applications.

Current state

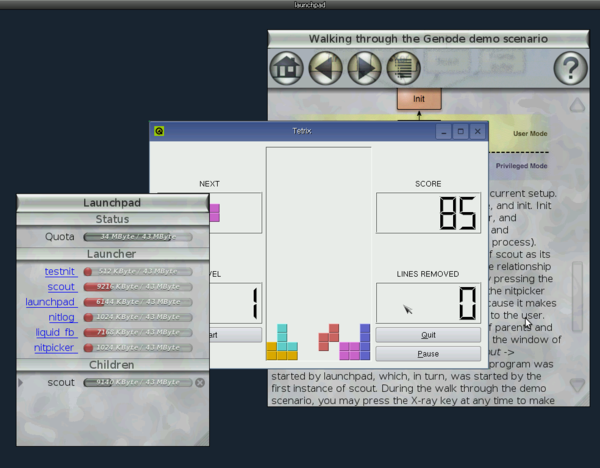

  • The Qt4 port comes in the form of a source-code repository, which contains all Qt source codes, and some example programs such as Tetrix. You can download the Qt4 repository as a separate archive at the download page of the Genode release 9.2. For the next release, we plan to separate the Genode-specific parts from Qt original code and make the Genode-specific parts a regular component of the Genode main line.

  • The Qt4 port consists of Qt's Core library, GUI library, Script library, XML library, and the UI tools library. Other libraries such as Webkit are not ported yet.

  • This first version of Qt4 on Genode is not to be considered as stable. There are several known issues yet to be addressed. In particular, the QEventDispatcher is still work in progress and not fully stabilized.

  • Because, we use to statically link programs, the binaries of Qt applications are exceedingly large. For example the Tetrix binary is 100MB including debug information and 11MB in the stripped form. For employing Qt on Genode at a larger scale, Genode should be enhanced with shared-library support.

Networking

With Genode 8.11, we introduced the Device-Driver-Environment Kit (DDE Kit) API, which is a C API specifically designed for implementing and porting device drivers written in plain C. We have now complemented DDE Kit with an environment for executing Linux device drivers natively on Genode. This library is called dde_linux26 and contained in our new linux_drivers source-code repository. The environment consists of several parts, which correspond to the different sub systems of the Linux kernel 2.6, such as arch, drivers, kernel.

The first class of device-drivers supported by DDE Linux 2.6 is networking. At the current stage, the DDE Linux network library comprises general network-device infrastructure as well as an exemplary driver for the PCnet32 network device.

Based on this library, we have created a basic TCP/IP test utilizing the uIP stack, which uses the DDE Linux network library as back end. The test program implements a basic web server displaying uIP packet statistics. When executed on Qemu, you can use your host's web browser to connect to the web server running on Genode:

For booting Genode on L4/Fiasco with the web-server demo, use a GRUB entry in your menu.lst file as follows.

 title Genode: DDE Linux 2.6 NET on L4/Fiasco
   kernel /fiasco/bootstrap -maxmem=64 -modaddr=0x02000000
   module /fiasco/fiasco -nokd -serial -serial_esc
   module /fiasco/sigma0
   module /genode/core
   module /genode/init
   module /config
   module /genode/timer
   module /genode/pci_drv
   module /genode/test-dde_linux26_net

The first four lines are L4/Fiasco specific. When using L4ka::Pistachio, the menu.lst entry looks like this:

 title Genode: DDE Linux 2.6 NET on L4/Pistachio
   kernel /pistachio/kickstart
   module /pistachio/x86-kernel
   module /pistachio/sigma0
   module /genode/core
   module /genode/init
   module /config
   module /genode/timer
   module /genode/pci_drv
   module /genode/test-dde_linux26_net

The web-server test requires the PCI bus driver and the timer service. Therefore, the config file for Genode's init should have following content:

 <config>
   <start>
     <filename>timer</filename>
     <ram_quota>512K</ram_quota>
   </start>
   <start>
     <filename>pci_drv</filename>
     <ram_quota>512K</ram_quota>
   </start>
   <start>
     <filename>test-dde_linux26_net</filename>
     <ram_quota>16M</ram_quota>
   </start>
 </config>

Now, its time to create an ISO image from all files specified in the GRUB configuration. For this, the new utility tool/create_iso becomes handy. The ISO image can then be booted on Qemu using the following arguments:

 qemu -m 64 -serial stdio -no-kqemu -cdrom <iso-image> \
      -net nic,model=pcnet -net user -redir tcp:5555::80

The -redir argument tells qemu to redirect TCP connections with localhost:5555 to the guest OS at port 80. After having booted up Genode on Qemu, you can use your host's web browser to access the web server:

 firefox http://localhost:5555
Notes about using the TAP version
  • Preparations

    • You must be permitted to sudo and have installed the tunctl utility. Under Debian/Ubuntu execute

       sudo apt-get install uml-utilities

    • Create TAP device

       TAPDEV=$(sudo tunctl -b -u $USER)
       sudo /sbin/ifconfig $TAPDEV 10.0.0.1

    • setup DHCP server on $TAPDEV and 10.0.0.0/8

  • Run qemu

     qemu -m 64 -serial stdio -no-kqemu -cdrom dde.iso \
          -net nic,model=pcnet \
          -net tap,ifname=$TAPDEV,script=no,downscript=no

  • Ping

  • Cleanup

    • Stop DHCP server

    • Remove TAP device

       sudo tunctl -d $TAPDEV


Operating-system services and libraries

C Runtime

We have replaced the malloc implementation of the original FreeBSD C library with a custom implementation, which relies on Genode's Heap as allocator. The FreeBSD libc reserves a default memory pool of 1MB, which is no problem on FreeBSD because virtual memory is backed lazily with physical pages on demand. On Genode however, we immediately account the allocated memory, which implicates high quota requirements even for applications that use little memory. In contrast, Genode's heap allocates and accounts its backing store in relatively small chunks of a few KB. Therefore, the quota accounting for applications is much more in line with the actual memory usage. Furthermore, our custom malloc implementation has the additional benefit of being thread safe.

  • Added i386-specific parts of gen lib, in particular longjmp, setjmp.

Device-Driver-Environment Kit

  • The DDE Kit uses our alarm framework (located in the os repository) now rather than its own event-scheduler implementation formerly called Tick.

  • We refined the DDE Kit API and reduced the number of custom types. For example, we removed the custom dde_kit_lock_t and using struct dde_kit_lock instead, and replaced dde_kit_thread_t with struct dde_kit_thread.

Because of the apparent stabilization of the DDE Kit API, we have now added this API to Genode's official API reference. See the documentation of the DDE Kit API...

PS/2 input driver

We improved the PS/2 keyboard driver by adding missing scan-code translations for the scan code set 1, in particular the cursor keys.

Applications

Launchpad configuration

Launchpad is a graphical application for interactively starting and killing programs. It is used for the default demonstration of Genode. By default, launchpad displays a preconfigured list of programs and their respective default memory quotas. The user can tweak the memory quota for each entry with mouse and then start a program by clicking on its name. As an alternative to using the default list, you can now define the list manually by supplying a configuration to Launchpad. The following example tells launchpad to display a list of two launcher entries:

<config>
  <launcher>
    <filename>sdl_pathfind</filename>
    <ram_quota>10M</ram_quota>
  </launcher>
  <launcher>
    <filename>liquid_fb</filename>
    <ram_quota>10M</ram_quota>
  </launcher>
</config>

To use this configuration for a Launchpad started via init, you can simply insert the launchpad configuration into the <start> node of the launchpad entry in init's config file.

Platform-specific changes

L4/Fiasco

  • Raise Blocking_canceled exceptions on canceled IPC calls

32-bit Linux

  • We continued dissolving the dependency of Genode from the glibc by using a custom getenv implementation used during process creation.

  • By default, we compile now with -nostdinc and explicitly specify /usr/include as include search directory only when needed. Previously, a Genode application, which included a host include file by mistake, has not raised any compilation error when compiled for the Linux version of Genode. Now, all Genode platforms behave equally with regard to include search directories.

  • We enforce using the actual compiler's C++ support libraries rather than the default libraries installed on the host.

Tools and build infrastructure

Official tool chain

At the download section of our website, we used to provide a crosstool-based tool chain as pre-compiled binaries. Since we got several requests about how to build such a tool chain from scratch, we created custom utility for downloading, building, and installing the official Genode tool chain. You can find the utility at tool/tool_chain. For usage instructions, just start tool_chain without arguments. Because this utility is a plain script, you can follow and verify each step that we use for creating the Genode tool chain. Currently, this official tool chain is based on binutils 2.18 and gcc 4.2.4.

As an alternative to installing the tool chain from source, we also provide pre-compiled binaries at the download section of our website. Visit our tool-chain download website...

For the Linux version of Genode, we still use the host's default gcc as tool chain. This way, we spare the hassle of downloading and installing a custom tool chain for somebody who wants to give Genode a quick try. With this is mind, we have fixes several small issues with gcc 4.3.2:

  • Fixed dependency generation for gcc-4.3.2. Older version of gcc used to append a .o dependency at the target of .d-files. However, gcc-4.3.2 seems to handle the option -MT differently, resulting in a rule that contains only the .d as target. Now, we explicitly specify both the .o file and the .d file as target. Consequently, on older gcc versions, the .o file appears twice but that is no problem.

  • Fixed assembler issue with the fnstsw instruction in the C library. This instruction does not accept eax but only ax as argument.

Build-directory creation tool

We added a rule for creating a pre-configured build directory for the Pistachio version to our build-directory creation tool (tool/builddir/create_builddir). Furthermore, we changed the default build configuration such that the official Genode tool chain is used for L4/Fiasco and L4ka::Pistachio.

Build system

  • Improved clean rule - visit each target directory only once

  • Stop the build process on the first error by default, for continuing the build process depite of an error, you can use the -i argument of make.

  • Compiler flags can now be set specific for compiling C and C++ sources. This is needed because both variants allow different sets of warning options. The new variables are called CC_CXX_OPT and CC_C_OPT.

ISO image creation tool

We have created a convenient front end for genisoimage, which we use for testing Genode on Qemu. You can find this ISO-image-creation tool at tool/create_iso. For usage instructions, simply start the tool without arguments.
