Release notes for the Genode OS Framework 24.05
The main driver behind Genode 24.05 was the recent release of Sculpt OS 24.04 (What's new?). Among the many usability advances of Sculpt OS is the flexible assignment of USB devices to components and virtual machines. Section Fine-grained and dynamic assignment of USB devices/interfaces introduces the underpinnings that made our new quality of life possible. Another user-facing feature with a surprisingly deep technical reach is suspend/resume. Section Suspend/resume infrastructure details the changes of the framework on that account. The new ability of seamlessly using the GNU debugger on top of Sculpt OS is a game changer for developers (Section On-target debugging using the GNU debugger (GDB)). Further user-visible and user-audible topics are the support for high-resolution displays and the wrapped-up transition to our new audio stack (Section Transition to the new audio interfaces introduced in 24.02).
Besides the many usability-motivated topics of our road map, however, we celebrate the break-through of running Sculpt OS directly on our custom microkernel alternatively to using a 3rd-party kernel. Section First version of Sculpt OS based on Genode's custom kernel details the background story, the showstoppers we had to overcome, and the prospects of this achievement.
The "Genode Foundations" book covers Genode's architecture, developer work flows, and reference material. In tandem with the current release, the document received its annual update, which includes not only adjustments to the most recent version but also new material about accessing GPIO pins, audio, debugging, and prominent APIs like the list model.
Further topics of the current release reach from timing and network-throughput optimizations, over the profound rework of storage encryption, to updated 3rd-party software such as Mesa, libSDL2, and Curl.
First version of Sculpt OS based on Genode's custom kernel
The ability to use a wide variety of kernels is certainly a distinctive feature of Genode. Since the very first version, the framework accommodated both a microkernel and the Linux kernel. Over the years, we embraced most members of the L4 family of kernels (OKL4, Pistachio, Fiasco, Codezero), all object-capability microkernels we could get our hands on (NOVA, Fiasco.OC, seL4), and even combined the framework with a static isolation kernel (Muen).
Confronting the framework with largely different kernel mechanisms has undoubtedly strengthened Genode's software design, but also gave us a great depth of insights into the landscape of kernel designs and the implications of the respective design choices. It did not take us long to question some of these choices, and we started experimenting with custom kernel designs on our own. This work made its first appearance in version 11.02 targeting Xilinx Microblaze softcore CPUs. Without haste, we steadily evolved this kernel as a research endeavour, mainly targeting ARM CPUs (SMP, TrustZone, virtualization, 64 bit), and later also addressing the x86 architecture.
When we started creating Sculpt OS as a Genode-based operating system for commodity PCs, we picked NOVA as kernel of choice. NOVA's unique combination of microkernel and virtualization mechanisms served us extremely well. It is truly a technical marvel! But like any other 3rd-party kernel, it imposes certain complexities and points of friction onto the user land. In contrast to 3rd-party kernels like NOVA or seL4, which are self-sufficient programs, our custom kernel is melted with Genode's core component. This alleviates redundant data structures between kernel and user space and makes Genode's resource management directly applicable to kernel objects. In other words, it fits like a glove. Hence, looking ahead, we foresee a much simpler and ever more coherent trusted computing base of Sculpt OS.
In order to realize this vision, we had to tackle a couple of long-time showstoppers. First of all, we needed to move IOMMU support out of the kernel into the user-level platform driver to render it kernel-agnostic. We completed a major part of this transition with release 23.11.
Second, virtualization of commodity operating systems is a common use case for Sculpt installations, ours at Genode Labs included. Therefore, adding support for Intel's Virtual-Machine Extensions (VMX) was another important missing piece of the puzzle. Under the hood, we refactored and generalized the kernel's x86 hypervisor support to allow for the selection of the available virtualization technology at runtime and consolidated code for page-table handling. Even though we still have some way to go before the kernel is ready to replace the time-tested NOVA hypervisor as the default kernel for Sculpt OS, this release is a milestone in that direction.
The Sculpt OS variant using our custom kernel is now available as a ready-to-use system image at https://depot.genode.org/jschlatow/image for Intel systems up to 8th generation core processors (Whiskey Lake). Note, when using Sculpt's integrated update mechanisms, you must already run at least Sculpt 24.04. The system image includes a launcher for running a Tiny-Core-Linux VM with a Firefox browser in VirtualBox. The launcher requires a window manager that is best deployed by switching to the corresponding preset. You also need to enable the system clock and mixer options.
Note that there are still a few areas of improvement for this Sculpt variant: The IOMMU support currently omits IRQ remapping, which is important to shield the system from rogue devices sending arbitrary interrupts. Moreover, we plan to improve the kernel scheduling for interactive and time-critical workloads.
Fine-grained and dynamic assignment of USB devices/interfaces
USB support has a long history within the Genode framework and for almost one decade its client session API has remained stable. Back in 2015, we split the USB host-controller driver parts from other USB client device drivers. Since then, a USB client component could request exactly one USB device per session from the USB server resp. USB host-controller driver. Moreover, a client had to drive the device in its entirety.
This former approach led to some limitations and intricateness. First, USB drivers capable of driving more than one device of the same class needed to know each device to request in advance. This information was not delivered by the USB session but by means of configuration. The out-of-band information path complicated the management of USB devices in complex systems like Sculpt OS, e.g., when passing arbitrary USB devices to a guest OS running inside a virtual machine.
The second drawback was related to USB devices with multiple interfaces of different interface classes, most prominently, USB headsets with extra buttons for volume control. Such devices typically have several USB interfaces for audio playback and recording, and at least one interface for HID input events. Whereas the development of one driver for each interface class is certainly an attainable goal, creating driver mixtures for each potential combination of interfaces is unrealistic. Ultimately, we strive to freely operate different interfaces of a single device by dedicated drivers.
These limitations accompanied us for quite some time, and a design to overcome them matured at the back of our minds. With the current release, the USB session eventually received its long-anticipated redesign.
The new USB session API provides a devices ROM to its client. Within this ROM a client can retrieve all relevant information about existing devices it is allowed to access. You can think of it as a virtual private USB bus for this client. When a new device gets connected that matches the client's policy of the USB host controller driver, the ROM gets updated appropriately. If a device gets removed physically, it'll vanish from the devices ROM, which may, for example, look as follows.
<devices>
<device name="usb-1-10" class="0x0" product="USB Optical Mouse"
vendor_id="0x1bcf" product_id="0x5" speed="low" acquired="true">
<config active="true" value="0x1">
<interface active="true" number="0x0" alt_setting="0x0"
class="0x3" subclass="0x1" protocol="0x2">
<endpoint address="0x81" attributes="0x3"
max_packet_size="0x7"/>
</interface>
</config>
</device>
</devices>
As can be seen in the example, the human-readable XML representation of the USB devices already contains most information that normally resides in the full-length device descriptor of the USB standard. That means a driver can parse relevant information about available configurations, interfaces, and endpoints - including their types and identifiers - without the need to communicate with the device in the first place.
Besides the devices ROM, the new USB-session API consists of an acquire function and a function to release a formerly acquired device. The acquisition of a device returns a capability to a new device RPC API. This distinct API includes a function to obtain a packet-stream buffer to exchange USB control requests with the USB host-controller driver. The host-controller driver sanity-checks the control requests, and potentially forwards them to the device. Thereby, a client can change the configuration of the device, enable an alternate interface, or request additional descriptors regarding device-class specific aspects.
Moreover, the device RPC API provides functions to acquire or release an interface of the device. When acquiring an interface, a capability to the interface RPC API gets returned. This third new RPC API provides a packet-stream buffer to the client, which allows for the exchange of interrupt, bulk, or isochronous transfers with the host-controller driver. The host-controller driver checks these transfer requests for plausibility, and forwards them directly to the device and vice versa.
The whole internals of the different RPC API layers, however, are not imposed on the developer. Instead, convenient helper utilities are provided within repos/os/include/usb_session/device.h. Those helper classes simplify the acquisition of USB devices and interfaces. Moreover, they support the notion of USB Request Blocks (Urbs) on the level of device (control) and interface (irq, bulk, isochronous). For an example component that makes use of these utilities, please refer to the USB block driver.
All components that directly use the USB session have been adapted to the new API. This includes the Linux USB driver ports for host controllers, HID, USB Ethernet cards, the libusb library port, our XHCI model within VirtualBox, and the black-hole component.
Practical considerations
For users of the framework or Sculpt OS, the most notable change is that all USB clients use their own devices ROM to react to device appearance and disappearance. No global information is required anymore. That means the addition of a new policy rule in the USB host-controller's configuration is sufficient to, e.g., let a device appear in a Linux guest. If the rule already exists, even the pure physical connect will result in the appearance of the device.
Because one USB session can now control an arbitrary number of devices, the syntax of the policy rules for a USB host controller driver changed a bit:
<config>
<policy label="usb_net">
<device vendor_id="0x0424" product_id="0xec00"/>
</policy>
<policy label="usb_hid">
<device class="0x3"/>
</policy>
<policy label="vm">
<device name="usb-2-2"/>
<device name="usb-2-4"/>
</policy>
</config>
As you might notice, there is no differentiation in the policy rules on the interface-level yet. In short, each device is still handled by only one driver. As a prerequisite to assign drivers to individual interfaces, drivers first have to become resilient against denied device-acquisition attempts. This is not the case for most ported drivers or virtualized guest OSes. Hence, even though the USB session API is now prepared for driving interfaces of one USB device by dedicated drivers, we decided against activating this feature on the policy level at the current time. Nonetheless, once a set of interface drivers gets in place, we can enable the added flexibility without touching the USB session API again.
Sculpt OS
The outcome of this line of work is already present in Sculpt OS 24.04, which makes the assignment of USB devices to components intuitive and secure.

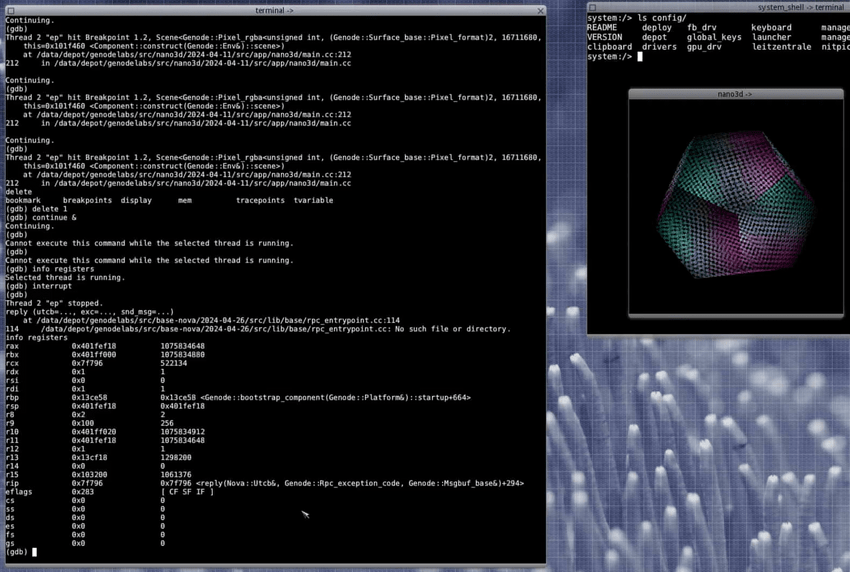

On-target debugging using the GNU debugger (GDB)
The renovation of our debugging monitor in Genode 23.08 was driven by the vision of easy on-target debugging on Sculpt OS. Just imagine, any runtime component from applications over device drivers to VMMs, like VirtualBox, could be started with debugging optionally enabled. The key to make this vision come true is the debug monitor at the heart of the Sculpt runtime. All other missing ingredients for viable on-target debugging - above all a GDB front end - are introduced with this release.
The debug monitor component got introduced in version 23.08. It is a drop-in replacement for the init component with the added ability to control the execution and memory content of selected child components using the GDB remote serial protocol. On Sculpt, the debug monitor now acts as the runtime init component. The user decides which components are made available to debugger control with a check mark in the launcher menu before the component is started. If the component is selected for debugging, the monitor configuration part for this component is added to the Sculpt runtime configuration.
The GDB component is the user-facing part of the debugging experience. It presents a command line interface in a graphical terminal window and communicates with the debug monitor in the background. The user can enter GDB commands for inspecting and modifying the state of monitored components.
In order to debug a component in a meaningful way, GDB usually needs to evaluate the executable files of the component and profits hugely from additional debug information like symbol names and source-code location information generated by the compiler. As this information can take up a lot of space, we decided to store it in separate debug info files shipped in dedicated dbg depot packages since version 23.11. Two small support components help to make this information available to GDB at runtime:
The dbg_download component can be started by the user by checking the download debug info option in the Sculpt launcher menu. It evaluates the Sculpt runtime configuration in the background and downloads any missing dbg archive content of monitored components into the depot.
The gdb_support component is started automatically together with GDB. It evaluates the Sculpt runtime configuration in the background and dynamically creates directories with symbolic links to the depot binaries and debug info files of monitored components in a RAM file system shared with GDB, and thereby allows GDB to access these files in a convenient way.
|
With this setup in place, the user can debug multiple components at once and control the execution of threads on an individual basis thanks to GDB's non-stop mode. Learn how to integrate and use GDB on Sculpt with our article and screencast video on Genodians.org.
One noteworthy challenge discovered while testing on Sculpt was that GDB apparently was not prepared for the case that there are no initial inferiors and that the first inferior could appear spontaneously on the remote side instead of being actively started by GDB. We had to make some adaptations to the GDB source code to support this situation and some more adaptations might be necessary in the future, for example to update the output of the info inferiors command when the first inferior appears.
Base framework and OS-level infrastructure
Transition to the new audio interfaces introduced in 24.02
In Genode's February release, we introduced new audio Record and Play sessions intended to supersede the old Audio_in and Audio_out interfaces. In the time following up to the current release, we worked on integrating the new sessions into the existing components. In fact, they are already exercised in the most recent Sculpt release.
As most prominently used by ported software, the VFS OSS plugin plays a vital role in interfacing with Genode's native audio stack. The already existing VFS plugin got renamed to legacy_oss while the new one takes its place and is usable as a drop-in replacement. Existing users have to adapt the session routes accordingly or change their VFS configuration to make use of the legacy plugin, if the use of the new sessions is not yet desirable.
In contrast to the old plugin, it is possible to configure the fragment size a client is allowed to use via its configuration and thereby enforce its latency requirements. The fragment size ranges from 2048 to 8192 bytes, which equals a period length of around 11.6 to 46.4 ms when using a sample rate of 44.1 kHz. The plugin leverages the ability of the report_play_mixer to convert sample rates. However, to constrain the resource requirements of the plugin, it is limited from 8 kHz to 48 kHz, which covers a reasonable range. Please consult the repos/gems/src/lib/vfs/oss/README file for more information.
The black_hole component gained additional support for providing the play and record sessions so that it is able to perform its role when using the new sessions. We also removed the custom audio subsystem from our SDL1.2 port in favor of using its own OSS back end, which brings it in line with our SDL2 port.
As there are no critical components left that exclusively use the old sessions directly, the way is paved to remove them. However, we keep the legacy audio sessions intact to give users time to migrate their components and become comfortable with the new interfaces.
Improved timing stability
Our recent work on real-time audio processing moved the timing characteristics of the framework into focus. Low latency cannot be attained in the presence of high jitter. But in a component-based system carrying general-purpose workloads, jitter can be induced for many reasons including kernel scheduling, spontaneous high-priority events, or the interference between clients of shared services. The timer driver in particular is such a shared service. While analyzing the timer's behaviour under stress, we indeed observed unwelcome interference between timer clients. E.g., the stability of a waveform generated at a period of 5 milliseconds would be effected by otherwise unrelated spontaneous USB-HID events. Those observations motivated the following improvements:
First, we simplified the timer implementation to make it dead-simple to understand and straight-forward to trace its behavior. The timer no longer relies on TSC-interpolated measurements but only on ground-truth values obtained from the timing device (or from the underlying kernel). Second, to improve accuracy at the client side, the timer no longer limits the time resolution when the current time is queried. The deliberate limiting of the time resolution is applied only to the triggering of timeouts in order to cap the timer's CPU load induced by its clients. Third, to limit the rate of inter-component communication, the timer batches the wake-up of clients that have timeouts closely clustered together. Combined, those measures reduced the cross-client interferences between timer clients comfortably below the level relevant for our synthetic test setup using audio periods of 5 ms. Note that such small periods are not generally usable in practice because real-world audio applications are subjected to additional sources of jitter.
The improvements are in effect for the timers used on NOVA, the base-hw kernel, and the PIT-based timer as used on seL4, OKL4, and Pistachio. Linux, Fiasco.OC, and L4/Fiasco are not covered yet.
Device drivers
Linux-device-driver environment (DDE)
Porting Linux drivers to Genode is a multi-staged process with the configuration of a minimal yet functional platform-specific Linux kernel as an essential step. The device support in this kernel is the baseline and reference for the final Genode driver. To simplify the testing of minimal kernel images, we introduced new run scripts for i.MX boards and PCs. Now, a plain execution of make run/pc_linux or make run/imx_linux runs Linux on the test target as known from Genode scenarios. In case of i.MX, a FIT image is generated, whereas we provide an i.PXE-bootable image for PCs. The run scripts integrate busybox into an initial RAM disk and, for i.MX, amend this image with memtool, a tool by Pengutronix to inspect all kind of memory under Linux (via /dev/mem).
Furthermore, we address some deficiencies in DDE Linux with this release. We improved support for fine-grained, sub-millisecond timing by enabling high-resolution timers and attended to a long-standing pc_nic_drv link reset bug that manifested in some situations on some platforms only. For driver developers, we added the lx_emul_trace_msg() function for the generation of low-overhead trace entries that can be used to debug timing-sensitive or high-traffic scenarios.
Intel framebuffer and GPU driver
An essential prerequisite for providing a GUI as Sculpt OS does, is having a driver for the graphics controller. In Genode, this task is split between the framebuffer driver and the GPU driver. Exposing these to a growing range of devices led to a few robustness and compatibility improvements for the Intel framebuffer/GPU drivers.
In the context of the latest Sculpt release, we made the accounting of maximum framebuffer memory configurable. Previously, this was derived from the component's RAM quota, which implicitly limited the maximum display resolution. The separate configuration explicitly sets the maximum framebuffer memory by default to 64 MiB, which suffices for resolutions of at least 3840x2160. The actual memory used by the component depends on the configured display resolution. If the RAM quota is depleted, the component will issue a resource request. The configuration follows the scheme established for the GPU driver with release 24.02.
In this release, we also incorporated a vendor check in the Intel framebuffer driver in order to ensure that it only operates Intel devices. Our central platform driver typically hands out all VGA-class devices to the driver, including GPUs of other vendors. This caused issues on platforms with an additional Nvidia GPU for multiple users. Thanks to Alice Domage for this contribution.
Furthermore, we fixed a few issues that popped up when test-driving Sculpt OS on the ZimaBlade. By doing this, we added support for Intel HD Graphics 500 to the Intel framebuffer/GPU drivers. This GPU can be found in various Intel Processors in the Pentium/Celeron N-series.
Suspend/resume infrastructure

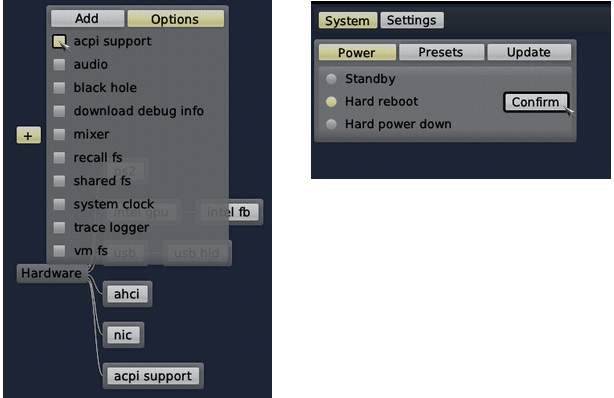

As planned in our road map, we integrated the current state of x86 suspend/resume as a feature into Sculpt OS. The sculpt manager got enhanced to drive the system state and manage the life cycle of driver components during suspend-resume cycles. The new power options can be found in the System menu once the ACPI support option is activated.
|
Non-stateful drivers are removed from the runtime before suspending and are restarted during resume, e.g., network drivers. Stateful drivers like NVME, AHCI, and GPU drivers participate cooperatively in the system states by stopping their processing and reporting their fulfillment. Currently, the USB host driver needs to be restarted forcefully on resume. To avoid data loss, the power suspend feature is not offered while a USB block device is in use.
Additionally, during Sculpt integration, several drivers got enhanced. The acpica application now reflects the completion of the last action, which the sculpt manager monitors and incorporates into the system state machine. The PC platform driver saves and restores the IOMMU configurations before and after suspend. Additionally, the platform driver gained the ability to trigger the final suspend RPC to Genode's core. Furthermore, the Intel display driver now participates in the system state changes by switching off all connectors before suspend in order to reduce graphical noise on displays during the transition.
Mesa updated to version 24.0.1
With the goal to add support for more recent Intel GPUs (Alder Lake+), we took the first step by updating our three-year-old Mesa 21 to version 24. Because Mesa is under heavy development, the effort to do so was more elaborate than anticipated. For the current release, we enabled all the previously supported GPUs, which are Intel Gen8 (Broadwell), Gen9 (Skylake up to Whiskey Lake), Gen12 (Tiger Lake) using the Iris Gallium driver, Vivante as found in i.MX8 SoCs, and Mali on the PinePhone. There are still many improvements to be explored, like buffer life-time management, using Mesa's native build system (Meson) for simplifying future updates, testing Alder Lake, replacing softpipe with llvm for software rendering, and adding Vulkan support, to name a few. We are looking forward to tackle these topics in future Genode releases.
Removed obsolete loader component and session interface
The loader was originally introduced in version 10.11 as part of an early live CD. It later served the purpose of dynamically starting and stopping preconfigured subsystems. As of today, the latter use case has long been covered by the dynamically reconfigurable init component. The only substantial client of the loader remained to be the qpluginwidget in combination with the Arora web browser. But as the blending of plugins with websites never moved beyond a fancy tech demo and Arora was replaced by Falkon, the current release removes the now obsolete loader infrastructure.
Libraries and applications
Consolidation of Tresor block encryptor and File Vault
Genode 23.05 marked a big update of the core logic for block-data security and management behind the file vault. It replaced the former Ada/SPARK-based implementation called CBE with a C++-based, modernized library that we named Tresor. As a side effect of this endeavor, we improved testing and fixed many issues of the former approach. However, the tresor library also inherited some unwelcome traits from its predecessor. The CBE approach was shaped in many ways by the semantic restrictions imposed by SPARK and the tresor library had retained some of these at the expense of code redundancy. In addition, we had adopted a rather peculiar approach to execution flow that led to unforeseen implementation complexity down the road. In order to improve this situation, the current release comes with a comprehensive re-design of the tresor library, relieving it from legacy burdens, significantly shrinking the code base, and making it much easier to understand.
Once warmed up with the topic, we stepped one level up in the block-encryption stack and continued reworking the tresor VFS plugin because it also suffered from over-complexity and redundancy. After finishing that, we noticed that the next higher layer - the File Vault - could also be improved in two ways: First, the file vault used to combine two unrelated tasks in one component: The logic for modeling typical user work-flows on the tresor VFS and the operation of a graphical user interface. We found that these are better assigned to separate components that work together via a narrow and well-defined interface. Second, the file vault used to operate directly on the low-level interface of the menu view component in order to drive its GUI instead of using the newer and far easier dialog API for this purpose.
|
For the component that deals with the logic, we stayed with the name file vault whereas the new front-end is the file vault gui.
Putting all these changes together, the whole ecosystem around the tresor block encryption and the file vault becomes far more manageable and its code base has been cut in half while providing the same feature set as before:
| component | 23.05 | 24.05 | difference |
|---|---|---|---|
| lib/tresor | 14374 | 5212 | -63% |
| lib/vfs/tresor | 2728 | 1823 | -33% |
| lib/vfs/tresor_crypto | 1162 | 1213 | |
| lib/vfs/tresor_trust_anchor | 1800 | 1992 | |
| app/tresor_init | 159 | 93 | |
| app/tresor_init_trust_anchor | 166 | 163 | |
| app/file_vault | 5429 | 1256 | -76% |
| app/file_vault_gui | - | 617 | |
| total | 25818 | 12369 | -52% |
But the update is not only about cleaning up. We also consolidated the stack by, for instance, fixing and re-enabling asynchronous rekeying, implementing robust handling of corner-case configurations, patching several performance limitations, and further improving the test suite.

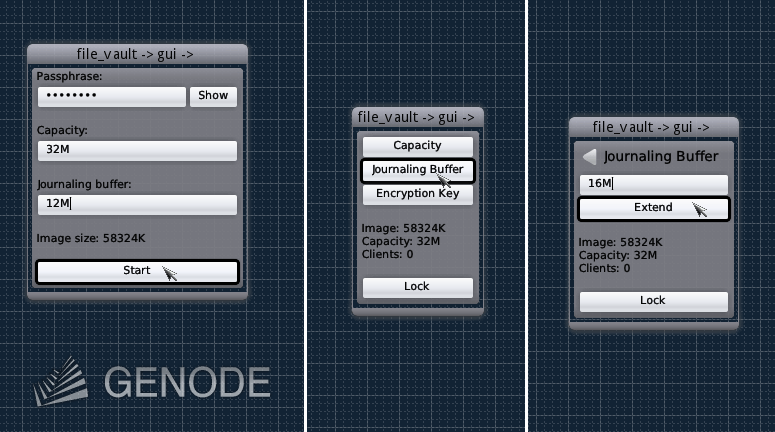

Last but not least, the file vault received two handy usability enhancements. First, the new file-vault GUI is fully controllable via keyboard. The hotkeys are documented in repos/gems/src/app/file_vault_gui/README. Second, as an implication of separating GUI from logic, the text-based interface of the file vault became the canonical way to steer that component. In order to achieve that, the interface had to be extended to the full feature set, which has the welcome side effect of easing the combination of the file vault with alternative front ends. For instance, the file vault could now become an integrated part of the administrative user interface of Sculpt OS. The new interface is mostly backwards compatible (only the non-functional version attribute disappeared) and documented in repos/gems/src/app/file_vault/README.
Despite the extensive overhaul, file vault version 24.05 remains compatible with old containers created via the 23.05 version and we also kept the structure and appearance of the new graphical front end close to that of the old version in order to make the transition as smooth as possible.
VirtualBox network-throughput improvements
The Uplink and NIC session interfaces provide means to batch several network packets before informing the other side to process the packets. The batching is crucial to achieve good network throughput and also to keep the CPU overhead per packet at a moderate level. Up to now, our ports of VirtualBox did not leverage this feature, which became noticeable on systems under high CPU load. By adding the batching of network packets to our VirtualBox ports, we were able to reduce the CPU load and achieve stable throughput measurements, which otherwise fluctuate more depending on other factors like scheduling.
Seoul virtual machine monitor
Since the previous release, the VMM received several improvements.
Notably, the former global motherboard lock got replaced by fine-grained locking within each device model where appropriate. Thanks to the better CPU utilization, long-running work, for example compilation, now finishes earlier. The network binding got reworked and now reflects network link-state changes from the Genode interface into the guest VMs. The legacy audio-session binding got replaced by Genode's new Play interface.
The so far unused ACPI model of the Seoul sources got enabled and adjusted to support so-called fixed ACPI events, e.g., power-button press event. On GUI window close, the event is now triggered and forwarded to the guest VM. Depending on the configuration of the guest, the VM may power down automatically, similar as done by our port of VirtualBox.
Finally, a USB XHCI model powered by our qemu-usb library has been added to Seoul, which got developed during our recent Hack'n'Hike event. With this new model, USB devices can be passed through to the guest. It has been successfully tested with several USB storage, keyboard, and audio devices.
SDL2 improvements
We enhanced our SDL2 port by enabling more subsystems, improving its window handling, and adding support for its text-input API.
This release adds preliminary support window resizing. It works well for some of the currently available ports but still has issues with others (especially those using an OpenGL context) as it depends to some degree on the component itself using the SDL2 library. As an additional feature, we added support for setting the initial window geometry via the <initial> node, e.g.:
<initial width="800" height="600"/>
This allows for restricting the initial window size because otherwise the actual screen size will be used and that might be too large depending on the attached display.
Support for using SDL2's text-input API has been enabled. Once the application enables text input, any key press that has a valid Unicode codepoint is sent as text input.
Curl updated to version 8.7.1
We updated our cURL port to version 8.7.1 to support the use of elliptic-curve algorithms for TLS (CURLOPT_SSL_EC_CURVES).
In setups where no service is employed to provide entropy, it might be necessary to increase the amount of statically configured entropy. Doubling the content of the <inline> VFS plugin as used in static configurations seems satisfactory. Furthermore, DNS resolving needs a configured <pipe> plugin to work properly. For an exemplary configuration, please look at the repos/libports/run/fetchurl.inc run-script snippet.
The fetchurl component also gained a verbose configuration option to enable verbose operations as a convenience feature to ease debugging.
Platforms
NOVA microhypervisor
Some of the command-line options changed. The iommu option is now split up into iommu_amd and iommu_intel, so that they may be enabled/disabled separately. The novga option turned into vga since it is unused nowadays. The tagged TLB feature for virtual machines is now enabled by default.
The kernel now supports the mwait instruction besides the hlt instruction, which can be used to give hints to the CPU to enter deeper sleep states. The feature is off by default and can be utilized via the Pd::system_control interface.
Build system and tools
Goa SDK
Aligned with the Sculpt release, the Goa tool has been updated with the corresponding depot archive versions for Sculpt 24.04. This also involved adding support for the new audio play and record sessions.
The Goa testbed package and preset have been updated accordingly so that an out-of-the-box Sculpt 24.04 lends itself as a remote test target for Goa.
