Sculpt Operating System 26.04

Introduction Hardware requirements and preparations Getting a first impression   Composing a system from scratch   Using a persistent storage device   Further exploration Base system   System overview   Tweaking and inspecting the system   System resources     GUI     ROM     Report     File system     Block device     Device access     USB     Real-time clock     GPU     Region maps     Direct memory-mapped I/O, port I/O, and device interrupts     Terminal     Tracing     Hardware virtualization     Protection domain     Network and uplink     Record and play     Capture and event     CPU-resource assignment   Service-level sandboxing   Runtime management   Storage device access and preparation   Making customizations permanent Advanced usage   Custom presets   Installation on disk   On-target system update   Window management   Multi-monitor support   Audio   Assignment of USB devices to components   System power control   Touchpad on Intel Gen11+   Building the boot image   Reproducing the system from source Credits

Introduction

Sculpt is a component-based desktop operating system that puts the user in the position of full control. It is empowered by the Genode OS Framework, which provides a comprehensive set of building blocks, out of which custom system scenarios can be created. The name Sculpt hints at the underlying idea of crafting, molding, and tweaking the system interactively. Starting from a fairly minimalistic and generic base system, this tour through the Sculpt system will cover the following topics:

• A boot image that is a live system, rescue system, and bootstrap system all in one,

• Connecting to a wired or wireless network,

• Managing and accessing storage devices,

• Installation,

• Ways to tweak and introspect the system, and

• Integrity-protected package management, system update, and rollback.

Community

The best place to learn more about using and tweaking Sculpt, to follow the work of the developers, and to get hold of announcements of new software and features is the federated Genodians blog:

Feedback and contact

Your feedback is appreciated!

A printable PDF version of this document is available at the Genode website.

Hardware requirements and preparations

Sculpt should be compatible with recent Intel-based PC hardware featuring Intel graphics, E1000 networking, Intel wireless, and AHCI/NVMe storage.

It is tested best on laptops of the Lenovo X and T series (X220, X250, X260, T430, T460, T470, T490, T14). For experimenting with Sculpt, we recommend getting a refurbished version of one of these. You may also find the unofficial hardware compatibility list helpful for identifying Genode-compatible hardware.

Sculpt has been tested with screen resolutions up to 3840 x 2160. Displays with a higher resolution are not expected to work. The sweet spot is a full-HD display.

Please revisit the BIOS settings of your machine in the following respects:

Getting a first impression

Sculpt is best explored by first booting the prebuilt disk image downloadable from https://genode.org/download/sculpt. Right after system boot, Sculpt's system-management user interface ("Leitzentrale") appears. The panel at the top of the screen contains two centered tabs for switching between the "Components" view and a "Files" view. The components view displays a live graph of the software components and their relationships. It also provides convenient access to the connected storage devices. The "System" button on the right side of the panel reveals a menu for system-global operations like resetting the machine, enabling optional features, or picking a pre-defined system composition from a selection of presets.

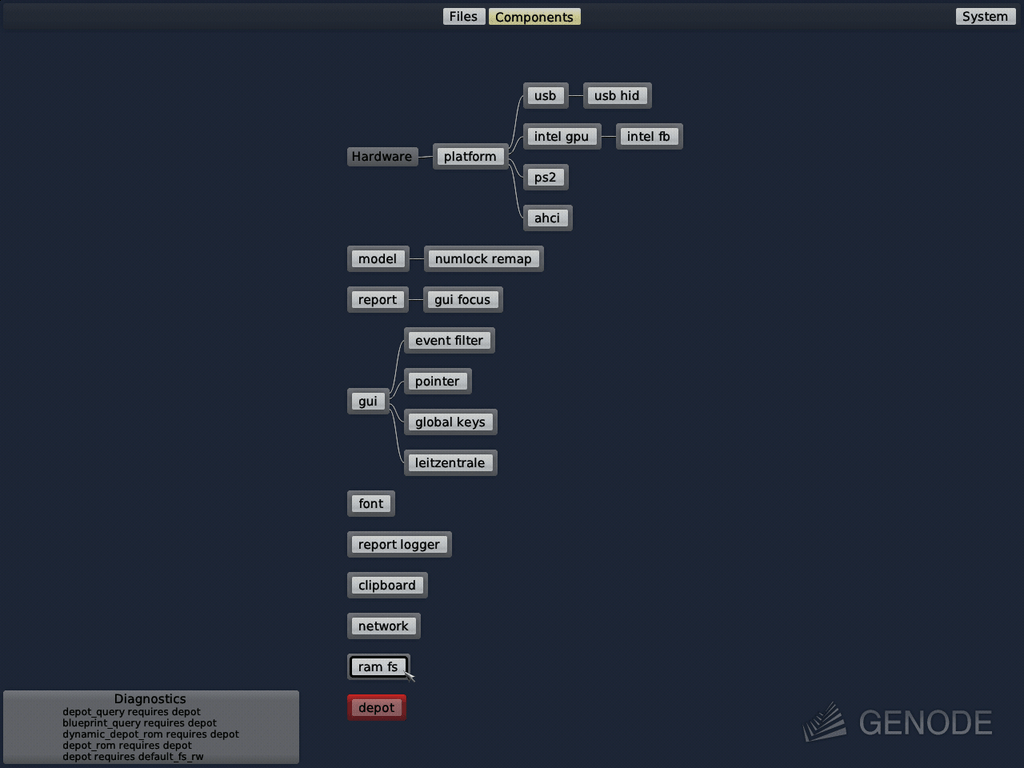

The main user interface is the component graph, which reveals how all the building blocks of the system relate to each other. A click on a component reveals the set of components it relies on (its trusted computing base) along with additional details and controls. Each connection means that the component on the right side relies on the component on the left side. Should the graph not fit on the screen, it can be vertically positioned using a scroll wheel or the page-up / page-down keys.

The red-tinted "depot" component along with the diagnostic messages in the lower left corner indicate that some precondition for using Sculpt OS is not yet satisfied. The system does not yet know where to store data. Select the in-memory file system as default storage location by clicking on the "ram fs" component in the graph and pressing the "Use" button. This way, software will be installed solely into memory without accessing any real storage device.

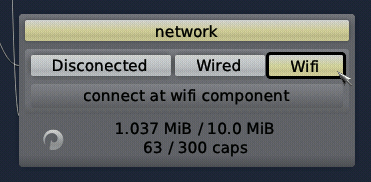

Enable networking in the network component by selecting one of the "Wired", "USB", or "Wifi" options, which prompts the system to start the corresponding driver component.

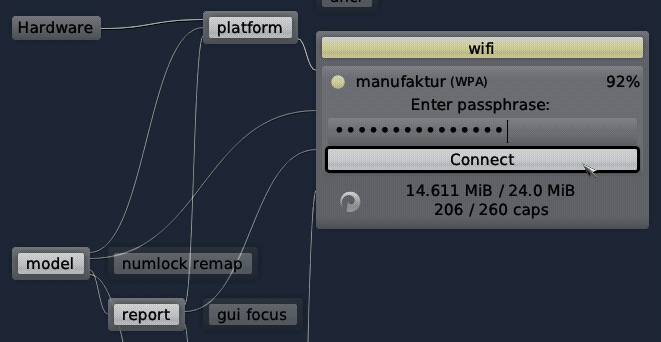

In the "Wifi" case, click on the wifi driver (close to the platform component at the upper part of the graph), select an access point and enter the corresponding passphrase, if needed. Once associated with the wireless network, a successful network connection is indicated by the IP address displayed in the dialog of the network component.

With a storage location selected and established network connectivity, it is time to give a preconfigured example sculpt scenario a quick try. The system menu at the upper-right screen corner hosts a couple of presets to play with. As a first test, let's load the nano3d preset.

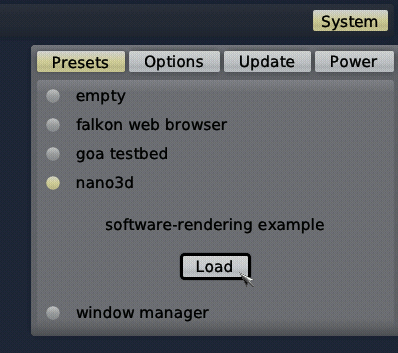

When loading the preset, Sculpt will automatically download all the needed ingredients into the selected RAM file system and start the components of the demo scenario, which presents a simple spinning object that follows the mouse. Press F12 to toggle between the administrative user interface and the running preset at any time. You may give the other presets a try as well:

Composing a system from scratch

Let's discover how to sculpt a custom scenario by starting with the empty preset that takes us back to the initial system state. In the following, we will build up a custom system by integrating one component after another.

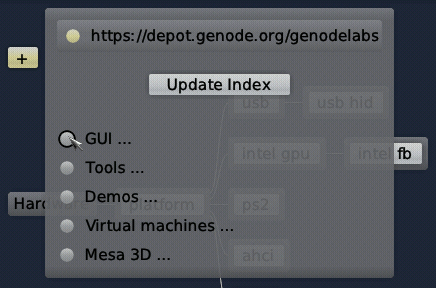

The gateway for installing and starting individual components is the unassuming + button of the components view, which opens a popup menu. The popup menu presents a choice of software sources - with "genodelabs" being preselected - along with an "Update Index" button. By updating the index, Sculpt downloads a catalog of components offered by the selected software provider. Once the index is downloaded, the catalog is presented as a hierarchically structured menu.

Software offered by different providers can safely be installed side by side because Sculpt keeps downloads from different providers separated. The default "genodelabs" provider offers components officially provided by Genode Labs. Think of each provider as a different individual. The providers known by the default system image are members of Genode's core developer team. One can add a new provider by supplying a custom URL using the "Edit" button. Note that by merely knowing a URL but no public key, Sculpt won't be able to verify the integrity of software obtained from such manually added providers. However, even if neither trusting one particular software provider nor the integrity of the download, one can still install and use the provided software without risk as long as one does not explicitly grant the untrusted components access to sensitive parts of the system. The judgement of trust is entirely yours.

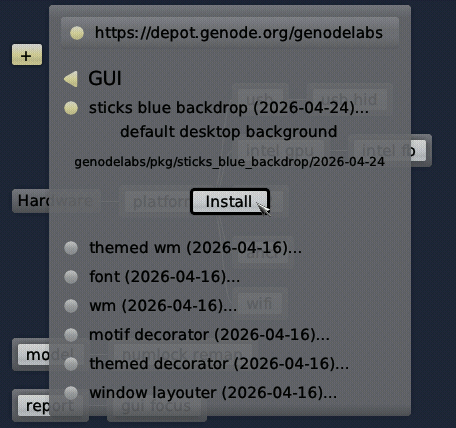

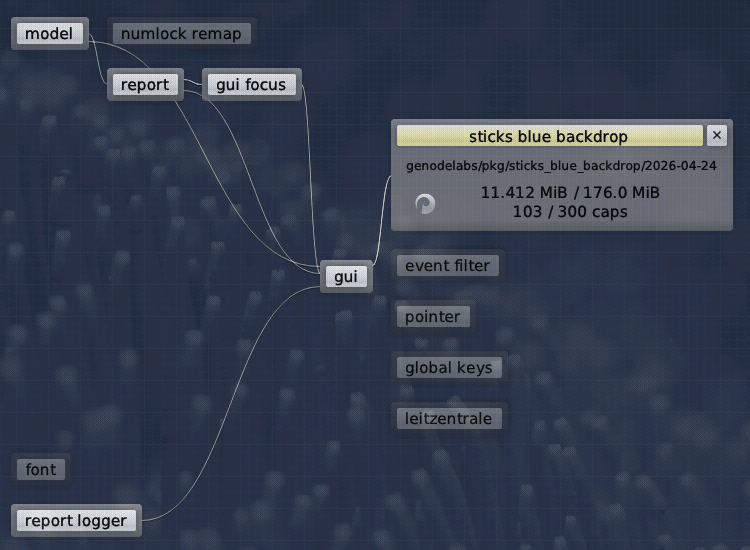

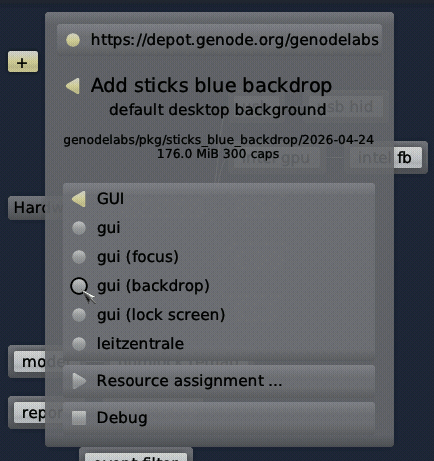

As a starter, let's add a desktop background. In the "GUI ..." sub menu, a click on the first item named "sticks blue backdrop" presents us with the option to install the package.

A click on the "Install" button triggers the download of the package and its dependencies. Once the download is complete, the menu presents a configuration dialog that allows you to define the interplay of the new component with the system. In this particular case, you have to decide for a GUI service to be used by the backdrop.

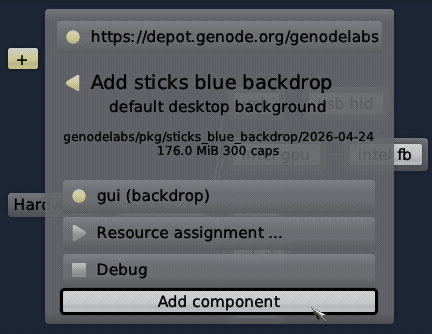

The first option "gui" would grant direct access to the system's low-level GUI server, which is normally not used by applications but by higher-level GUI servers like a window manager. The second option "gui (focus)" is preserved for a single component that controls the keyboard focus. The third option "gui (backdrop) would connect the component to the special "desktop background" GUI session, which appears as a layer behind all other applications. The fourth option "gui (lock screen)" would give the component the privilege to act as a global screen lock. The last option "leitzentrale" would allow the component to appear integrated into the administrative user interface. In our case, "gui (backdrop)" is the correct choice. Once the configuration is complete, a new button for adding the component to the system appears.

After pressing the button, you should notice a slight visual change. Press F12 to toggle between the Leitzentrale and the desktop. Now, the backdrop should become visible in full glory. In the component graph, the new component appears connected to the GUI. A click on the component reveals further information. The upper-right "x" button can be used to remove the component from the system. A click on the circular icon in the lower-left corner restarts the component.

As a next step, let us add a window system. In the + menu, you can find a readily packaged window system at GUI -> themed wm. After installing the package, you are asked to take five decisions:

The GUI (focus) should be assigned to "gui (focus)" to put the window manager in charge of controlling the keyboard focus, which is part of its job after all. The GUI should be assigned to "gui" as the basic mechanism to be used for graphical output and user input for the windowed applications. By assigning Report (shape) to pointer, we allow the window manager to report mouse-cursor shapes to the pointer component. By assigning _Report (clipboard)_ to clipboard, we grant the window manager the right to change the content of the global clipboard. Vice versa, by assigning ROM (clipboard), we permit the window manager to obtain clipboard content.

After adding the component, the "themed wm" will appear in the components view. To give the window system a quick try, add the small demo you can find at Demos -> nano3d and assign its GUI to our "themed wm". You will be greeted with a window as follows.

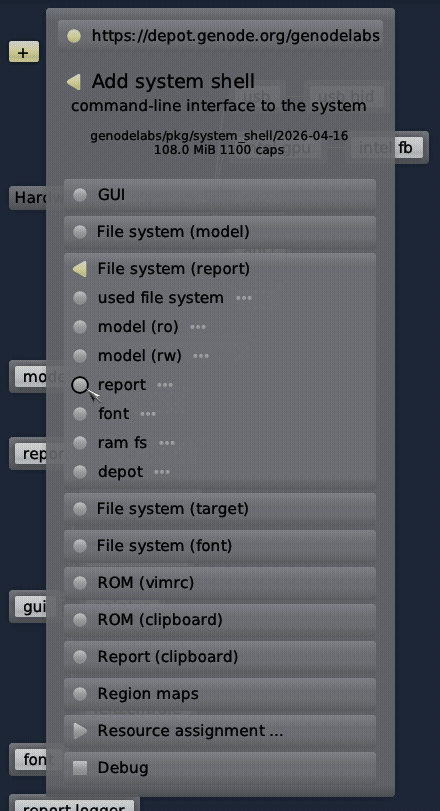

Next, let us add a small Unix-like subsystem called system shell hosted in a window. Select and install Tools -> system shell from the menu. The configuration dialog is a bit more elaborate this time.

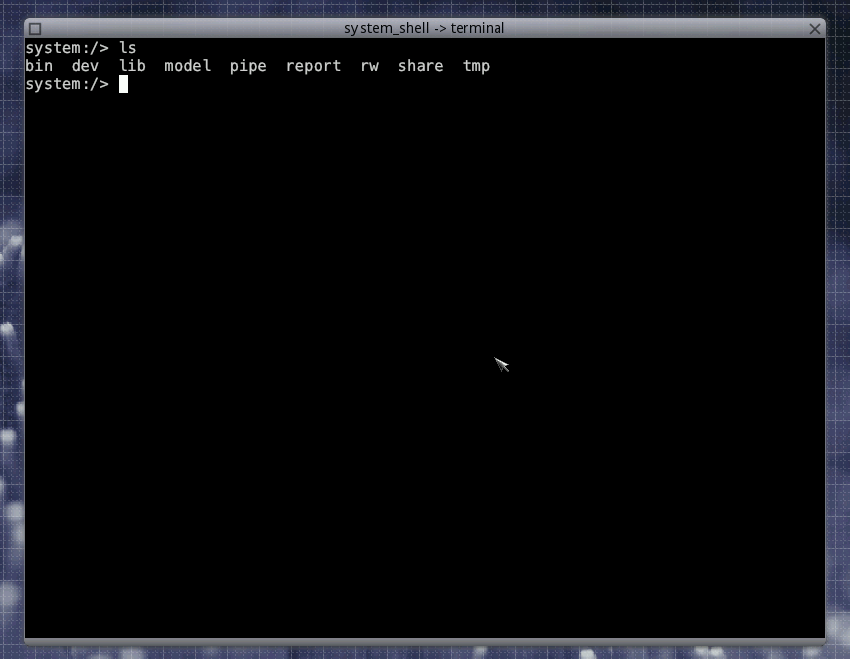

With those decisions taken, a fresh system shell can be started, which appears in a window.

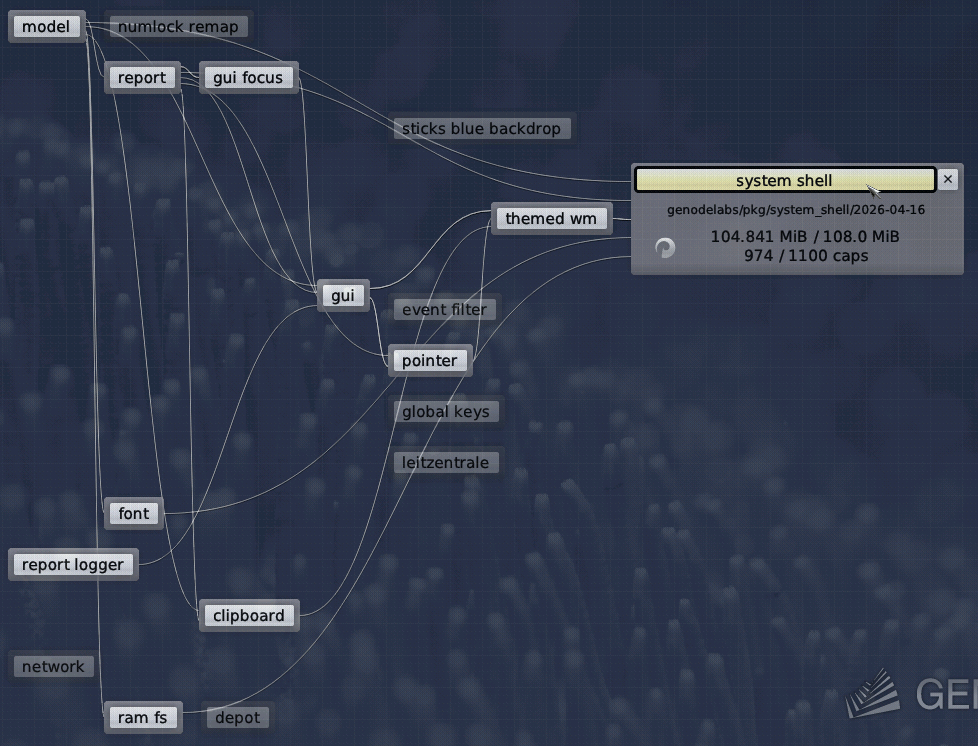

When selecting the "system shell" component in the graph, the relationship to the other components of the system is presented. This provides a convenient way to reveal the trusted computing base of the selected component. For example, since there is no connection from system shell to the network, we know that this component is isolated from the network. The network-related components are outside the trusted computing base of the system shell.

Using a persistent storage device

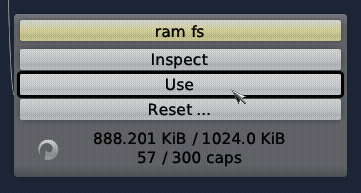

The steps described above used an in-memory file system (ram fs) as target for Sculpt OS, which is a nice playground for experimentation but otherwise impractical for real-world use because all downloads and configurations vanish when rebooting the system.

Sculpt OS supports USB storage, NVMe, and SATA (AHCI) as storage target. Only one target can be selected for use at a time. To select one of those targets for use, make sure to have deselected the "Use" button of the "ram fs" component.

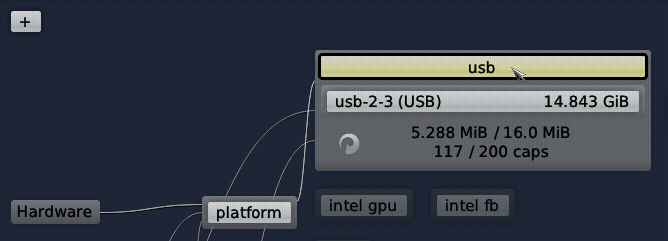

The following steps describe the use of the USB stick that holds the Sculpt OS boot image as target. The USB stick can be accessed be selecting the "usb" component.

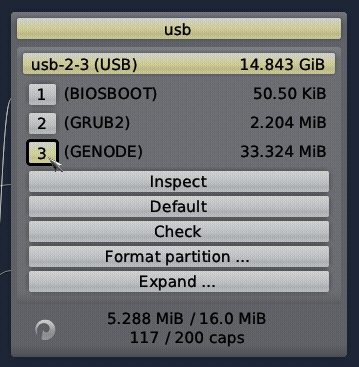

Upon selecting the USB stick, one can see three partitions. The first two partitions are necessary for booting from the stick whereas the third partition labeled "GENODE" is designated as Sculpt storage target. This partition is merely large enough to hold the system image of about 33 MiB, but there is no room for additional data yet. When selecting the 3rd partition, the dialog offers several management operations.

One can use the "Expand" operation to enlarge the partition up to the capacity of the storage device,

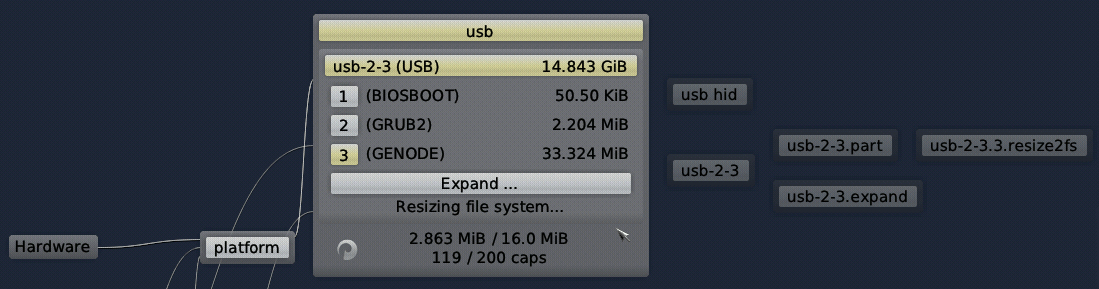

Under the hood, the expand operation modifies the partition table and resizes the file system, which you can observe by the additional components at the right. Depending on the used USB stick, resizing can take some time. You may have a glimpse at the progress by selecting the "log view" option in the system menu.

Once the resizing has completed, you can see that the partition has grown to a practical size. In principle, one can manually instruct Sculpt OS to use this partition as storage target via the "Use" button. To automate this manual step, the partition can be marked as preferred storage target by pressing the "Default" button. This renames the partition to "GENODE*", which tells Sculpt to use it automatically at boot time. By combining this automatism with the steps described in Section Making customizations permanent, all of your customizations can take immediate effect at boot time.

Further exploration

The presets offered in the "System" menu provide suitable starting points for creating custom Sculpt systems. In particular the "window manager" preset is a useful baseline for desktop-like use cases, providing a ready-to-use window system along with a system-shell window. Using this preset is generally preferable over the single "themed wm" component because it gives finer control over the individual parts of the window-system stack. For example, it is able to remember the window layout across reboots, and it allows for updating or restarting the window decorator independently.

Of course, there are many more components to explore and to combine. For inspiration, please follow the postings at https://genodians.org, for example:

Base system

Unless customized, the Sculpt base system resides as a self-contained live operating system on a USB stick, not installed on disk. This has two advantages. First, it makes the update of the base system straight-forward and completely risk-free. Simply install the new version on a second USB stick. Should the new version cause any trouble, one can fall back to the original one by swapping the USB sticks. Second, it alleviates the need to install any boot-loader infrastructure on disk. In fact, one can use an entire disk as one file system without creating a partition table.

Note that Genode is not limited to booting from USB. It also supports the use of partitions. But for this guide, we keep things as simple as possible.

System overview

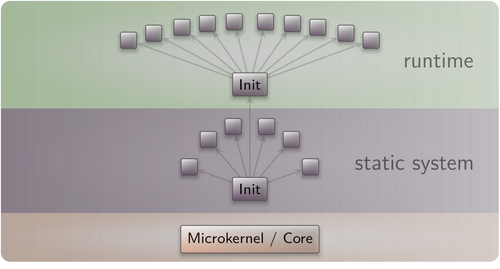

The Sculpt system consists of three layers. At the lowest level, a small microkernel of only about 15K lines of code creates the notion of protection domains and provides mechanisms for inter-component communication. Only the microkernel contains code that is executed in privileged CPU mode. All other components are executed at user level. Initially, the kernel hosts a hand full of hardwired components that introduce the system's dynamic data model in the form of an in-memory file system, a component that translates the deployment described by the data model into a dynamic runtime configuration, and the actual runtime subsystem bringing this configuration to life.

The initial state of the system's data model is defined by the system image. It establishes the deployment of a predefined set of components covering the components needed to accommodate the administrative user interface, including the device drivers needed for graphics and user input.

Thus far, the system is rather fixed and boring. It becomes expandable and exciting by making the system's data model available to vetted components such as the administrative user interface. With access to the data model, the component composition can be dynamically manipulated at runtime. In fact, with access to the system's data model, all building blocks of the entire system (except for the hand full of hard-wired components of the static system) is open for customization and rearrangement. Vice versa, the system can at wish be completely sealed by removing all components with access to the data model. With no component accessing the data model left, further modification becomes impossible by design.

Deployment definition

The component composition is defined by the deploy file at the root of the model file system. Each component corresponds to a child node. Multiple child nodes can be grouped into options. All options reside in the option/ subdirectory. The deploy file can include all children defined by an option using an option node named after the option. For example, option board includes all the children defined at option/board in the deployment. Note that all children must have unique names. Child nodes of different options can refer to each other.

Component configurations

Components can be configured using the config sub node of its child node or by a detached configuration file. By convention, such configuration files are placed at the model's child/ subdirectory and named after the respective component. For example, the configuration of the gui component can be found at child/gui.

Report subsystem

The report subsystem aggregates logging data and reports generated by various deployed components. Internally, it is an in-memory file system that organizes reports into subdirectories according to the reporting component. For example, the accesspoints report produced by the wifi driver is captured at wifi/accesspoints. Log data is written to a log file at the root of the report file system. Each line is prefixed with the originator of the log message. Besides aggregating reports and log messages, the report file system contains two special files that are useful for introspection.

First, the state file contains the status of all children currently running. Besides resource usage and limits, it reflects special conditions such as resource starvation or the exit code of an exited component. The level of detail can be adjusted in the model's runtime configuration. For example, by setting the requested attribute of the report node to yes, the state will present all connections initiated by all children.

Second, the runtime file contains the entire view of the wiring of the runtime system. It also contains diagnostic information about troubled children (stalled nodes) such as missing dependencies or incomplete packages.

Leitzentrale subsystem

The Leitzentrale component gives you - the user - full control over the system's data model. You are free to inspect and manipulate the system in any way you wish. The German term Leitzentrale refers to a control center that requires a certain degree of sophistication from the operator, which would be you.

The Leitzentrale can be toggled at any time by pressing F12 and will be enabled right after boot. It presents itself with a minimalistic GUI for accessing the storage devices attached to your machine and for configuring your network connectivity. Most importantly, however, it allows the user to access the model and report file systems. Both file systems are readily accessible under the "Files" tab of the panel. The file browser allows you to traverse directory hierarchies, inspect individual files, and edit files. Alternatively to the "Files" tab, Sculpt 26.04 features a command-line interface. To spawn this command-line interface, click on the "ram fs" component in the graph and select "Inspect". In the panel, a third tab named "Inspect" appears, which hosts the command-line interface.

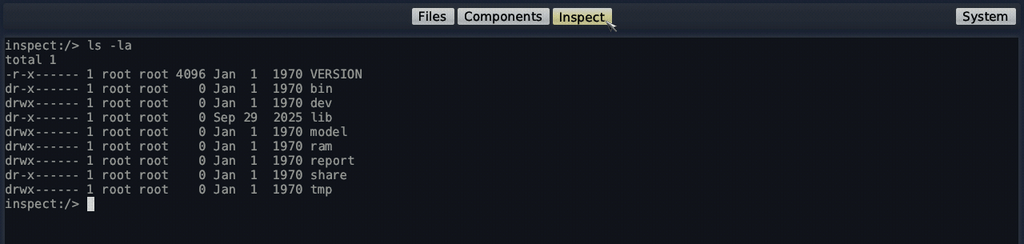

The inspect tab hosts a small Unix-like subsystem as user interface. Don't let the presence of a Unix shell mislead you. Sculpt is not a Unix system. It merely uses Unix-like subsystems as convenient tools for managing and editing files. Within the inspect tab, you can interact with both the report and the model file systems using familiar commands such as the bash shell, a subset of coreutils, and Vim.

Note that the interactive inspect view is not bullet-proof. Should you get stuck, you may re-spawn it at any time by toggling the "Inspect" button.

Besides the interactive shell, the Leitzentrale employs a simple viewer of the most recent diagnostic log messages. You can toggle the log display via the log view option in the system menu. Each line of the log is prefixed by the label of the originating component. For detailed analysis, the complete log is also available at report/log and can be browsed with Vim in the inspect window.

Tweaking and inspecting the system

The Leitzentrale subsystem empowers you to interactively inspect and tweak the running system either by using the file browser hosted in the "Files" tab or by using the command-line interface and the Vim text editor provided by the "Inspect" tab. The system's data model has the form of text files using Genode's human-inclined data syntax.

Interactive file browser

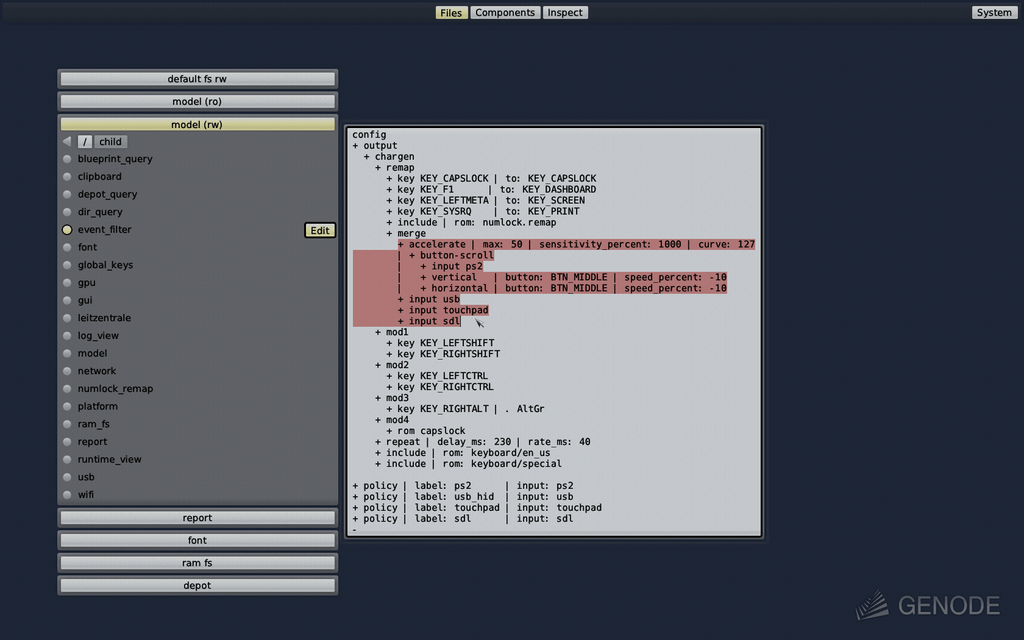

The "Files" tab of the panel switches the main screen area to a simple file browser that lists all file systems available, in particular the model and report file systems. By toggling one of the file-system buttons, the respective directory hierarchy can be browsed. When hovering a file, an "Edit" or "View" button appears, which can be used to open the file in a text area that appears on the right side of the file browser. The editor supports the usual notepad-like motions, operations, and shortcuts (control-c for copy, control-v for paste, control-s for save).

Note that the file browser does not yet support file operations like the copying, renaming, or removal of files. Also, the editing of files with long lines or the browsing of directories with many entries is not appropriately covered yet. As a fallback when encountering these limitations, Sculpt still features the Unix-based inspect tab, which can be activated by toggling the "Inspect" button inside the USB or storage nodes of the component graph.

Vim skills recommended for using the inspect tab

With the "Inspect" button toggled for at least one file system, the inspect tab leverages (a subset of) GNU coreutils, bash, and Vim as the user interface for sculpting the system. If you are not yet familiar with using Vim, you may take Sculpt as a welcome chance to get your toes wet. To enjoy the experience, you should be comfortable with the following operations:

• Opening and navigating within a text file (moving the cursor, using / to search),

• Using the insert mode to make modifications,

• Reverting accidental modifications (u undo),

• Saving a modified file (:w),

• Opening a file in a secondary buffer (:e),

• Switching between buffers (:bn for next, :bp for previous),

• Copy and paste (v start selection, V start line selection, y remember selection, p paste remembered selection),

• Exiting Vim (:x save and exit, :q! discard changes).

Adjusting the user-input handling

By default, Sculpt uses the US-English keyboard layout, but it offers a few alternative keyboard layouts like French and German in the dialog of the event-filter component. A change of this setting is reflected in the /model/child/event_filter file, which is the configuration for the event-filter component. You are free to tweak the file manually according to your needs. Any change takes effect as soon as you are writing the file. There is no guard rail. A fat-fingered mistake can lock you out from further interaction.

For example, to remap the capslock key to escape, change the following line

 key KEY_CAPSLOCK | to: KEY_CAPSLOCK

to

 key KEY_CAPSLOCK | to: KEY_ESC

After saving the file, a Vim user's life suddenly becomes much more pleasant.

Take the time to review the remaining parts of the event-filter configuration. The nested configuration nodes define a hierarchy of filters that are applied in the order from the inside to outside There are filters for merging events (merge), remapping buttons and keys (remap), supplementing symbolic character information (chargen), pointer acceleration (accelerate), and emulating a scroll wheel by moving the pointer while pressing the middle mouse button (button-scroll).

Exploring the living construction plan

You can review and manipulate the construction plan of the entire system and its subsystems by browsing the model file system, starting at the deploy file and traversing into the options and child configurations. Follow the wiring between the components by reviewing the connect nodes. Each connection resolves a requirement (left side) to a service (right side), which is usually another child.

Try out the following tweaks:

• Change the transparency of the Leitzentrale by modifying the alpha attribute of the fader_config component at /model/child/leitzentrale.

• Change the font size of the log view component by adjusting the size_px attribute for the log_terminal at /model/child/log_view.

• Display the log view in a window instead of the Leitzentrale by changing its gui connection in /model/option/log_view from child leitzentrale to the window manager.

You may also enjoy tinkering with the configuration of the GUI server, which is located at the file /model/child/gui. For example, you may change the background color the "default" domain.

System resources

Whenever adding a new component via the + menu, one has to define how to connect the component with the rest of the system. It is important to know what the presented options mean to take educated decisions.

Each choice represents a connection to a system resource of a particular type. Initially, the presented options are resources that are built-in into Sculpt's base system. Once new components enter the picture, their services appear as further items in the connection dialog.

Resource type	Interface	Built-in options
Capture	Capture
Device access	Platform
Direct memory-mapped I/O	IO_MEM	raw hardware access
Direct port I/O	IO_PORT	raw hardware access
Direct device interrupts	IRQ	raw hardware access
Event	Event
File system	File_system
GPU	Gpu
GUI	Gui
Hardware virtualization	VM	virtualization hardware
Network	Nic
Network uplink	Uplink
Play	Play
Protection domain	PD	system PD service
Real-time clock	Rtc
Record	Record
Region maps	RM	custom virtual memory objects
Report	Report
ROM	ROM	platform information
		build information
Terminal	Terminal	debug monitor
Tracing	TRACE	system
		deployment
		component
USB	Usb

Table 1: Overview of resources

Table 1 gives an overview of the different built-in resources and their types. The names given in the interface column correspond to the Genode session types as used in the routing rules of the init component, in particular the init instance hosting the runtime using /report/runtime as input. Let's look into each type in more detail.

GUI

ROM

Report

File system

Block device

Device access

USB

Real-time clock

GPU

Region maps

Direct memory-mapped I/O, port I/O, and device interrupts

Terminal

Tracing

Hardware virtualization

Protection domain

Network and uplink

Record and play

Capture and event

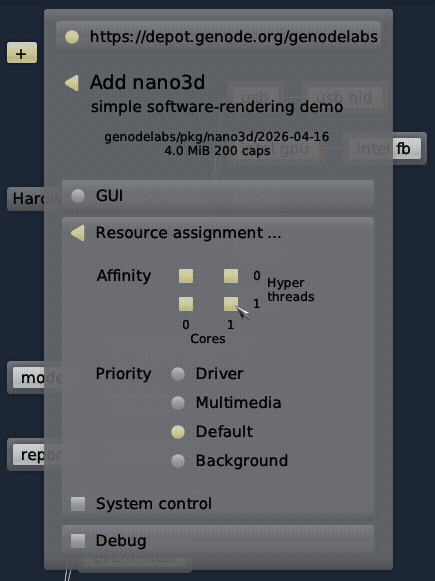

CPU-resource assignment

Service-level sandboxing

In order to deploy any component, all resources requested by the component must be assigned to appropriate services. For example, when adding a web browser, the browser's request for record and play sessions must be satisfied, which is natural when consuming multimedia content. However, in other situations, we may deliberately want to isolate the web browser from the audio hardware, forcibly preventing the browser from producing any noise or tapping the microphone.

This is where the so-called "black hole" component enters the picture, which can be enabled as option in the system dialog. The black-hole component provides pseudo services for most resources mentioned in the previous section, including audio, networking, video capture, USB, and ROM. Hence, the resource requirements of an untrusted component can be satisfied without exposing a real resource. This is especially useful for deploying highly flexible components like VirtualBox, which supports many host-guest integration features, most of which are desired only in a few scenarios. For example, to shield a virtual machine from the network, the "Network" resource of the VirtualBox instance can simply be assigned to the "black hole".

Runtime management

As a prerequisite for deploying user-selected components, a default storage location must be defined by selecting the "Use" button of a file system in the menu. For the start, it is best to select the "ram fs" as storage location. Once you are comfortable with Sculpt, you may make the installation and customizations permanent by using a real storage device instead.

The selection of a "used" file system has two immediate effects. First, any files present at /config/<VERSION>/ at the selected file system are copied to the model file system. As the RAM file system is empty, no files are copied. Second, the so-called depot/ is initialized at the selected file system. The depot is the designated place for the installation of software packages. By default, the depot is initialized such that the Sculpt system accepts software from Genode Labs and Genode's individual core developers. You may inspect the content of /ram/depot/ using the inspect view.

With a file system and an Internet connection selected, additional software can be installed and run. The most convenient way is the interactive use of the + menu to browse the catalogs of packages provided by software providers and to configure new component instances.

Additionally, the deployment can be controlled by the deploy file of the model file system and the option files located at the option/ subdirectory. The deploy file contains a child node for each running component. Such a child node specifies the package, the assigned resources, and the rules of how the component is connected with other components. Additionally, option nodes can refer to groups of children.

A config node within a child - when present - overrides the one provided by the package. So the configuration of each individual child can be freely customized, usually by taking the configuration delivered by the package as starting point.

Each time the deploy file or an option file is written, the change takes immediate effect. In particular, the Sculpt manager will automatically kick off the download of the referenced packages and its dependencies and thereby populates the depot. Once the download has completed, the children are started.

Storage device access and preparation

Whereas the RAM file system is practical for quick tests, it goes without saying that we want to persistently store data, programs, and configuration information on a storage device. Sculpt supports SATA disks, NVMe devices, SD cards, and USB-storage devices. Depending on the block-device controllers present, Sculpt starts the driver components "nvme", "mmc", and "ahci" as needed. A click on such a node reveals the attached block devices, possible operations, or - if a partition table is present - more details about the device structure. USB storage devices can be managed via the "usb" node.

Depending on the operation selected by the user, the Sculpt manager will automatically spawn helper components (hosted at /model/option/managed) to perform the selected operation. For example, by selecting the "Format device" operation, the Sculpt manager will create a tiny Unix-like subsystem with the selected block device mounted at /dev/block and e2fsprogs mounted at /. This Unix-like subsystem runs mkfs.ext2 as init process. Likewise, an existing EXT2 file system can be checked by activating the "Check" button, which triggers the execution of fsck.ext2 for the selected file system.

A particularly interesting option is presented at the last partition of the Sculpt USB stick. Initially - right after copying Sculpt's tiny disk image to the USB stick - the partition is only a few MiB in size. However, using the "Expand" operation, the partition can be extended to the full size of the USB stick, which makes enough room to use the USB stick as Sculpt file system. This clears the way for sculpting a custom live system stored entirely on the USB stick.

All file systems supported by Sculpt present an "Inspect" button. By toggling this button, the selected file system becomes accessible in the "Inspect" tab. Note that more than one file system can be inspected at a time. Each file system will appear as a directory at the root of the inspect directory tree, named after the corresponding device and partition number. This way, the inspect window becomes a convenient tool for copying files between file systems. Under the hood, the Sculpt manager spawns a file-system component for each inspected file system, which translates the notion of files and directories to block-device accesses.

Making customizations permanent

It is possible to make any customization of the model file system permanent by copying the modified files to a directory named config/<VERSION> on a persistent file system where <VERSION> corresponds to the Sculpt version number as found in the /model/VERSION file. Each time this file system is selected for "Use", those files will be automatically copied to the in-memory model file system.

The most important customization is the system composition, usually created via the + menu. To make it permanent, copy the current state of /model/deploy to \\ /<DISK>/config/<VERSION>/deploy where <DISK> corresponds to your Sculpt partition. This deploy configuration will take effect whenever the Sculpt partition is selected for "Use".

Another generally useful customization is the boot-time selection of the network uplink, for example to start the wifi driver automatically by default. This can be accomplished by copying /model/option/board to /config/<VERSION>/option/ at the persistent file system after having interactively selected "Wifi" once. The same approach can be used to prevent the automatic use of USB-HID devices. By removing the usb_hid driver from the persistent copy of the board option, the usb_hid component will no longer be enabled automatically whenever a HID device appears.

To streamline the boot procedure into a customized Sculpt system even more, it is possible to mark one file system as default. At boot time - when the Sculpt manager discovers the attached storage devices - it automatically selects a file system for use according to the following order of preference:

1. An entire SATA or NVMe device used as a single EXT2 file system

2. Partition named "GENODE*" on a USB device in a GPT (GUID Partition Table),

3. Partition named "GENODE*" on a SATA or NVMe storage device in a GPT,

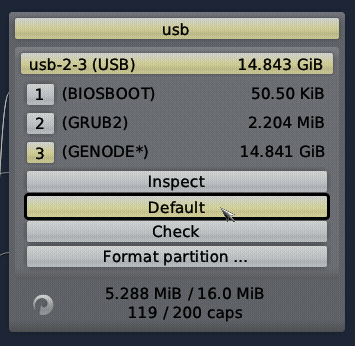

The storage dialog hosts a convenient "Default" button that allows one to toggle a partition label between "GENODE" and "GENODE*". For example, the last partition of the Sculpt USB stick can be marked as default or non-default using this button.

Advanced usage

Custom presets

The presets available in the system menu at the upper-right screen corner correspond to the files present at /model/presets/. Each file is a deploy configuration. You can turn the currently running system into a preset by copying /model/deploy as new file to /model/presets/.

To keep your custom preset available after reboot, follow the pattern described in Section Making customizations permanent by copying the file to /config/26.04/presets/ at your Sculpt partition.

Installation on disk

Even though Sculpt OS is distributed as a system image for a USB stick, the same image can be written to an NVMe or SATA disk to attain a computer that boots directly into Sculpt OS. The easiest way is starting a live Linux of your choice, downloading the Sculpt OS image to /tmp/, checking the SHA256 sum of the downloaded file against the known-good value as found on the download page, and writing the file to the block device of the disk using the dd command. After booting into Sculpt OS from disk, use the interactive dialogs in the nvme or ahci component to extend the 3rd (GENODE) partition to make the whole disk usable and mark the partition as "default" (relabeling it to GENODE*).

Should you prefer to set up your machine for dual-booting Linux and Sculpt OS, you can find all information needed for supplementing a Sculpt OS boot entry to your existing boot loader at the /boot directory of the third partition of Sculpt's disk image.

On-target system update

The system image of Sculpt OS resides at the /boot/ directory of the "GENODE" partition of the boot medium. E.g., when using a USB stick as boot medium on the PC, the boot directory resides on the 3rd partition of the USB stick. To update the Sculpt system image, make sure to have selected your boot partition for "use" by Sculpt. Should your boot medium differ from your regular Sculpt partition, e.g., when using an entire hard disk as one Sculpt partition, you may need to "un-use" your regular Sculpt partition and temporarily "use" your boot USB stick instead.

With having your boot medium selected for the use by Sculpt, the system menu at the upper-right screen corner provides you with a convenient user interface for discovering and downloading new versions, and for switching between the installed system images.

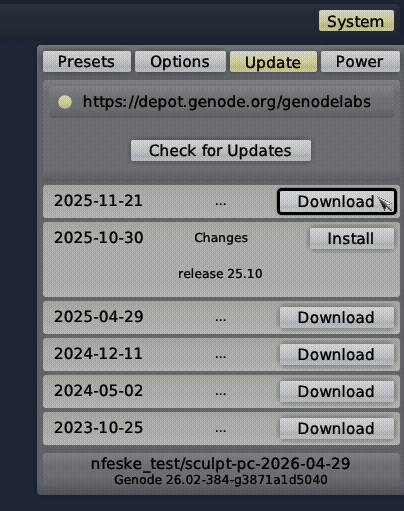

The upper part of the dialog allows you to select the system-image provider. By default, the provider is set to the one of your currently running system image. But you have the option to obtain images from alternative providers, or even add a new custom provider by using the "Edit" button. Under the hood, each listed provider corresponds to a directory in your depot/ at the sculpt partition. When adding a custom provider, it will show up as a new directory there. The lower part of the dialog presents the information about the currently running system image for reference.

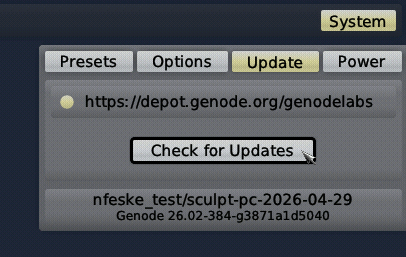

The check-for-updates button downloads the information about available images from the selected provider. This information is presented along with the already downloaded images as exemplified in the following screenshot.

The little "..." dots indicate that change-log information is available when clicking on the entry. The download button fetches the image. Once fetched, the download button turns into an install button. You can select any present image for your next boot via the corresponding install button. Under the hood, this operation copies the content of the depot/<provider>/image/sculpt-<board>-<version>/ directory to your /boot/ directory. Note that you can switch back and forth between different versions this way. For example, should a new version not behave to your full satisfaction, you can easily switch back to the previous one by using the install button of the original version. As a precaution, it is good to have downloaded the initial Sculpt version you are using. In the worst case, should a new version fail to boot, you can still manually copy this downloaded original version from your local depot/ to your boot directory using a live USB system.

Once an image is installed, the dialog tells you "reboot to activate". One way to do that is by changing the system state in /model/system to "reset".

Window management

The best starting point for realizing a Sculpt-OS-based desktop scenario is the window-manager preset. Applications connected to the window manager (wm) appear with window decorations that can be used to arrange, maximize, or close the window. To move a window, either drag the window title with the mouse, or drag the center area (the inner 50%) of the window while holding the Super key. For changing the size of a window, either drag the window border with the mouse, or drag the window area nearby the border while holding the Super key.

Keyboard input is received by the currently focused window, which appears brighter than non-focused windows. The keyboard focus follows the pointer position whenever the pointer is moved. It can also be changed by the keyboard shortcut Super-Tab, which cycles through the most recently focused windows. The maximized state of the currently focused window can be toggled via the keyboard shortcut Super-Return.

Some applications like games may grab the pointer when clicking into their window. One can regain the control over the pointer at any time by pressing the Super key.

Sculpt OS supports virtual desktops, in the following called screens. One can switch between screens using the key combinations Super+1, Super+2, Super+3, etc. New windows always appear at screen 1. To move a window to a different screen, press the number key of the targeted screen while dragging the window. Alternatively, one can take the currently focused window to another screen using the key combination Super-Shift-N where N is the screen number.

When using multiple displays in panoramic mode, screens 1-3 appear on the primary display, screens 4-6 on the second display, and screens 7-9 on a third display, if present. If a display is not present, the corresponding screens fall back to the primary display. So all windows remain reachable whenever a display is disconnected. By default, the role of a display (primary, secondary, ternary) is assigned according to the display's position within the panorama from left to right. So one can change their role by adjusting their order in the display driver's configuration dialog as described in Section Multi-monitor support.

The window layout is captured in the file /rw/recall/window_layouter/recall/25.10 named after the version of the file format. The file can be edited manually. When saved, the changes take immediate effect, which offers an alternative way for manipulating windows:

• Changing the order of assign rules to change the window-stacking order.

• Move or resize a window by changing the corresponding xpos, ypos, width, and height attributes.

• Maximize/un-maximize a window by setting the maximized attribute to "yes" or "no".

• Change the assignment of screens to physical displays.

As the rules file is a regular file, one can create a backup of the current window layout by copying the file, and switch between different layouts by overwriting the rules file by a different version. The window layout is preserved across reboots because the rules file is a regular file stored on the used file system, except when using the RAM file system.

Multi-monitor support

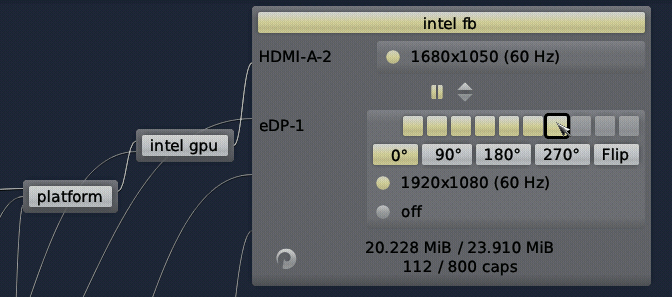

Sculpt OS supports the use of multiple monitors on PCs with Intel graphics. By default, all connected monitors display the same mirrored image. This default can be tweaked using the configuration dialog hosted in the intel fb node of the component graph.

The dialog displays a list of present monitors labeled after their respective connectors. A mode can be selected for each connector when clicking on the connector entry. In-between the entries there are two buttons. The link button (showing two vertical lines) is a toggle that defines whether the two adjacent entries are mirrored or operated as discrete monitors. It is enabled by default so that all monitors participate in the mirroring. By deselecting the last enabled link button, the entry below the button becomes a discrete (non-mirrored) monitor.

The swap button allows for changing the order of the monitors, which has two effects. First, the resolution of the very first monitor defines the size for mirrored image. Hence, by changing the order of mirrored monitors, one can pick the preferred image size. Second, the order of discrete monitors defines the layout of a panorama, which spans the mirrored image on the left followed by each discrete monitor towards the right.

When using discrete monitors, Sculpt OS places the Leitzentrale GUI on the monitor that currently hosts the mouse pointer. When moving the pointer from one monitor to another, the GUI moves with it. Should the monitors have different resolutions, Sculpt OS automatically adjusts the system-global font configuration according to the monitor used. Should this effect on all users of the system-global font configuration (like terminal windows hosted on yet another monitor) be undesired, one can define a static font configuration by changing the managed attribute of /model/child/font to no.

If a monitor supports brightness control, the brightness can by adjusted in the mode selection of the monitor. The mode selection also offers the option to switch off the monitor, except for the monitor currently hosting the Leitzentrale GUI. As a note of caution, there is currently no safety mechanism against locking oneself out of the user interface by selecting a mode not properly handled by a single connected monitor.

The framebuffer-driver configuration as driven by the interactive dialog can be found at /model/fb. Several multi-monitor profiles (like office, home, train) can be realized by merely replacing this file. The panorama is defined at the /model/child/gui configuration, specifically the capture node. The capture node assigns the viewports on the panorama as captured by the framebuffer driver. Sculpt OS manages the panorama only if the capture node has the attribute managed set to yes. By setting managed to no, arbitrary panorama layouts can be realized using the attributes xpos, ypos, width, and height.

For diagnostic purposes, the /report/intel_fb/connectors report contains the connector state as currently observed by the framebuffer driver. Furthermore, /report/gui/panorama contains the information about the panorama and the components participating in capturing the panorama.

Audio

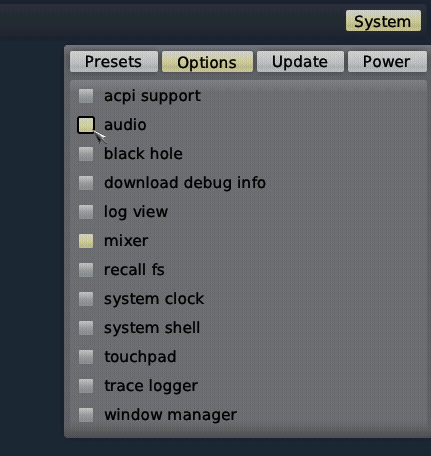

Sculpt OS supports playback and recording of audio as an optional feature that is available at the options tab of the system menu. The central component is the mixer, which provides the record and play services to the audio driver(s) and applications.

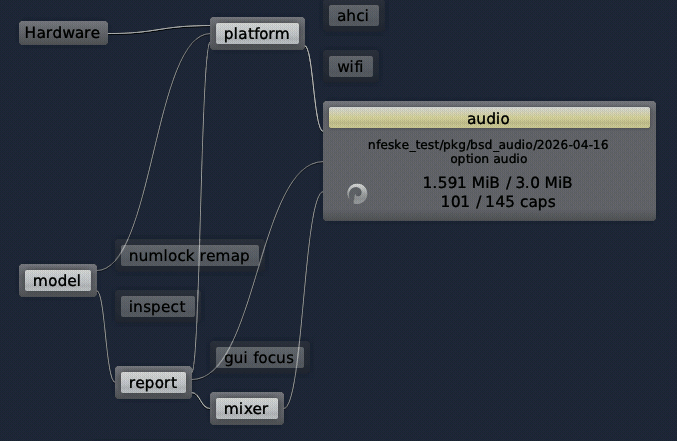

The audio driver is a mere client of the mixer. It can be started and removed without interfering with the liveliness of audio applications.

By default, the mixer keeps the microphone muted and mixes the playback of all applications at an equal volume. This policy is defined by the mixer's configuration at /model/option/mixer, which you can find accompanied by instructive comments. For example, uncomment the play nodes referring to mic_left and mic_right to unmute the mic, or tweak the volume values. For tweaking the configuration, it is useful to know the labels of the clients. One can obtain this information from the mixer's report at /report/mixer/state. You can find the mixer configuration described in more detail in its documentation.

Analogously to the mixer, the audio driver can be configured dynamically by tweaking the values in /model/option/audio. For example, you can find the master volume for the whole device there.

Assignment of USB devices to components

Sculpt OS has built-in drivers for USB HID, storage, and network devices, which are started on demand. In addition, individual USB devices can be assigned to components such as virtual machines, webcam drivers, or smartcard drivers. The rules for assigning USB devices to components reside at /model/child/usb. Whereas Sculpt edits these rules concerning HID and storage devices automatically, additional rules can be defined by the user.

The /model/child/usb file contains a few examples that can be taken as a blueprint. The policy nodes refer to clients of the USB component whereas the embedded device nodes represent assignments. The examples take the vendor and product IDs of devices as keys for the assignment.

Note that one device may be present in multiple policies, which works well if only one of the matching clients is running at a time. It is fine to define rules for devices that are not present. As soon as such a device gets plugged in, the assignment will take effect. This is useful when repeatedly plugging and unplugging the same USB device assigned to a virtual machine.

While defining /model/child/usb rules, it is helpful to review the currently attached devices. This information is available at /report/usb/devices. To quickly assign a device to a USB client, it is usually enough to copy the single line of the corresponding device from /report/usb/devices to /model/child/usb and adjust the indentation by two spaces.

System power control

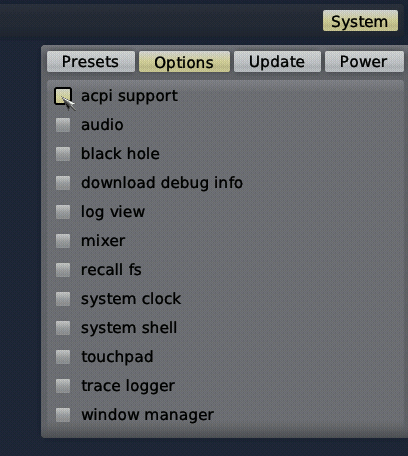

Sculpt OS offers system-power controls like reset, power-down, and standby available as an optional feature. On PC hardware, this functionality requires ACPI support, which can be enabled as option on the system menu.

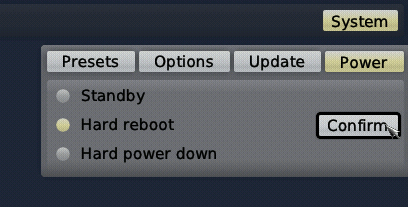

Once enabled, the "acpi support" component appears and the system menu at the upper-right screen corner hosts interactive power controls.

Caveats

As suggested by the names of controls, the reset and power-down operations take immediate effect if confirmed. Note that the file-system driver synchronizes file modifications every 10 seconds. So take a breath before powering down or rebooting your machine.

The standby support is highly experimental. The baseline functionality of returning from sleep to an interactively accessible system has been tested on machines with mixed yet promising results.

On most machines, the wifi driver is not able to re-initialize the wifi device after resume. The Lenovo x260 is a notable exception.

Upon resume, Sculpt OS restarts the USB host-controller driver, which implies the restart of all USB clients. E.g., a virtual machine connected to USB will be affected. While accessing any USB storage device, the standby option is deliberately not presented.

The NVMe, AHCI, and Intel GPU drivers are suspend-resume aware, which means that clients of their services are expected to continue operating after resuming from standby. The response of the file-system stack to suspend-resume cycles is not yet thoroughly tested through.

The audio driver is not automatically restarted during the suspend-resume cycle. You may try restarting audio manually.

The limitations will be addressed gradually over time. Feedback about the feature on your specific machine is appreciated. Don't hesitate to post your experience at the Genode users forum.

Touchpad on Intel Gen11+

Touchpads on recent Intel laptops are integrated as I2C HID devices without legacy PS/2 emulation. To support such touchpads, a dedicated driver is needed. Even though Sculpt OS has no built-in touchpad driver, it offers a touchpad driver as an option in the system menu. Of course, you will need to use a USB mouse to initially activate and configure this option.

The driver needs to know a few platform-specific values that must be manually configured at /model/option/touchpad. The configuration is annotated with known values for several laptop models. Adjust the configuration by using the values matching your hardware and restart the touchpad driver to let the new configuration take effect.

Building the boot image

The following steps assume that you have the Genode tool chain installed on a GNU/Linux system. For reference, Ubuntu LTS is known to work well. If you don't know your way around Genode's source tree yet, please consider the "Getting started" section of the Genode Foundations book that is available for download at https://genode.org.

1. Clone Genode's Git repository:

    git clone https://github.com/genodelabs/genode.git
    cd genode
    git checkout -b sculpt-26.04 sculpt-26.04


2. Download the support for the NOVA microkernel

    ./tool/depot/download genodelabs/bin/x86_64/base-nova/2026-04-30


   The content is downloaded to the public/ directory and extracted to the depot/ directory.

3. Download all ingredients for the Sculpt boot image

    ./tool/depot/download \
       genodelabs/pkg/x86_64/sculpt/2026-04-30 \
       genodelabs/pkg/x86_64/sculpt_drivers-pc/2026-04-30


4. Create a build directory

    ./tool/create_builddir x86_64


5. Configure the build directory by editing build/x86_64/etc/build.conf. Most importantly, enable the gems source-code repository where the Sculpt scenario resides. In addition, the libports, ports, pc, dde_linux, dde_rump, and dde_bsd repositories are needed as well.

   Second, change the default configuration of the QEMU_RUN_OPT variable to image/disk instead of image/iso. This way, the build process will produce a valid disk image with a GPT partition table instead of a legacy ISO image.

   You may also consider enabling parallel build by uncommenting the corresponding line at the top of the file.

6. Prepare GRUB 2, which is needed for booting from the disk image

    ./tool/ports/prepare_port grub2


7. Create the Sculpt boot image (defined by the run script at repos/gems/run/sculpt_image.run)

    make -C build/x86_64 run/sculpt_image KERNEL=nova BOARD=pc DEPOT=omit


   The boot image is created at build/x86_64/var/run/sculpt.img.

8. Write the boot image to a USB stick:

    sudo dd if=build/x86_64/var/run/sculpt.img of=/dev/sdx bs=1M conv=fsync


   Here, /dev/sdx refers to the device node of your USB stick. To determine it, you may inspect the output of dmesg after plugging it in.

Reproducing the system from source

Section Building the boot image presents the creation of the boot image from pre-built packages. You may prefer to build those packages from source, in particular for customizing the system.

Before building the packages, various ports of 3rd-party software need to be prepared. The following command prepares all of them at once:

 <GENODE-DIR>/tool/ports/prepare_port \
      acpica bash coreutils curl dde_bsd dde_rump e2fsprogs-lib \
      expat gdb gmp gnupg grub2 jitterentropy jpeg libarchive libc \
      libdrm libgcrypt libiconv libnl libpng libssh libusb libuvc \
      libyuv linux linux-firmware mesa ncurses nova openssl qemu-usb \
      stb stdcxx sticks_blue_backdrop tcl ttf-bitstream-vera vim \
      virtualbox6 wpa_supplicant x86emu xz zlib

The ingredients of the boot image are defined by the sculpt/default-pc.sculpt file located in the repos/gems/ repository. The default set of software installable at runtime is subsumed by the pkg/sculpt_distribution and pkg/sculpt_distribution-pc packages. You can find the depot recipes for these packages at repos/gems/recipes/pkg/. You may want to create your version of these packages by changing the package provider from genodelabs to <YOU> by adding the line

 RUN_OPT += --depot-user <YOU>

to your <build-dir>/etc/build.conf.

To build the boot image including all required depot packages, it's best to instruct the build system to manage the versioning and updating of the depot content automatically by enabling the following line in your build.conf file.

 RUN_OPT += --depot-auto-update

With these precautions taken, the execution of the sculpt.run script - as described in Section Building the boot image - implicitly builds all required binary packages from source.

The sculpt_distribution and sculpt_distribution-pc packages can be created independently of the sculpt.run script by using the depot/create tool manually.

 <GENODE-DIR>/tool/depot/create \
      UPDATE_VERSIONS=1 FORCE=1 REBUILD= \
      <YOU>/pkg/x86_64/sculpt_distribution \
      <YOU>/pkg/x86_64/sculpt_distribution-pc

The FORCE=1 argument ensures that source archives are re-created and checked for the consistency with their versions. Whenever the source code of any archive changes, the UPDATE_VERSIONS=1 argument automatically updates its version. Please don't forget to commit the updated hash files. The empty REBUILD= argument limits the creation of binary packages to those that do not yet exist in binary form. If not specified, the command would recompile all packages each time. You may further add -j<N> to parallelize the build process where <N> is the level of parallelism.

To make the created packages available for download from within the running Sculpt system, you must publish them. This involves the archiving, signing, and uploading of the content. The former two steps are covered by the tool/depot/publish_current tool. For more information about working with the depot tool, refer to the package-management documentation.

All options and presets integrated into the boot image are defined in gems/sculpt/default-pc.sculpt and the accompanied files are located at gems/sculpt/option/ and gems/sculpt/deploy/ respectively. Whenever a child defined in the selected options or presets contains a pkg attribute with one or more / characters, it is assumed to be a complete pkg path of the form <USER>/pkg/<NAME>/<VERSION>. Otherwise, it is assumed to be just the pkg name and is replaced by the current version of the current depot user's pkg at system-integration time.

The following article gives further inspiration and practical hints for customizing the Sculpt OS system image.

Credits

Sculpt is an example system scenario of the Genode project, which is a novel operating-system technology designed and developed by Genode Labs GmbH.

That said, Genode is not developed in a vacuum. It greatly benefits from the free-software/open-source community. The following projects play a particularly important role for Sculpt OS.

Device drivers

Programs and libraries used within the Unix-like subsystems

Libraries used for the package-management infrastructure

Applications

Libraries used for the graphical user interface

Crucial tools used during development
